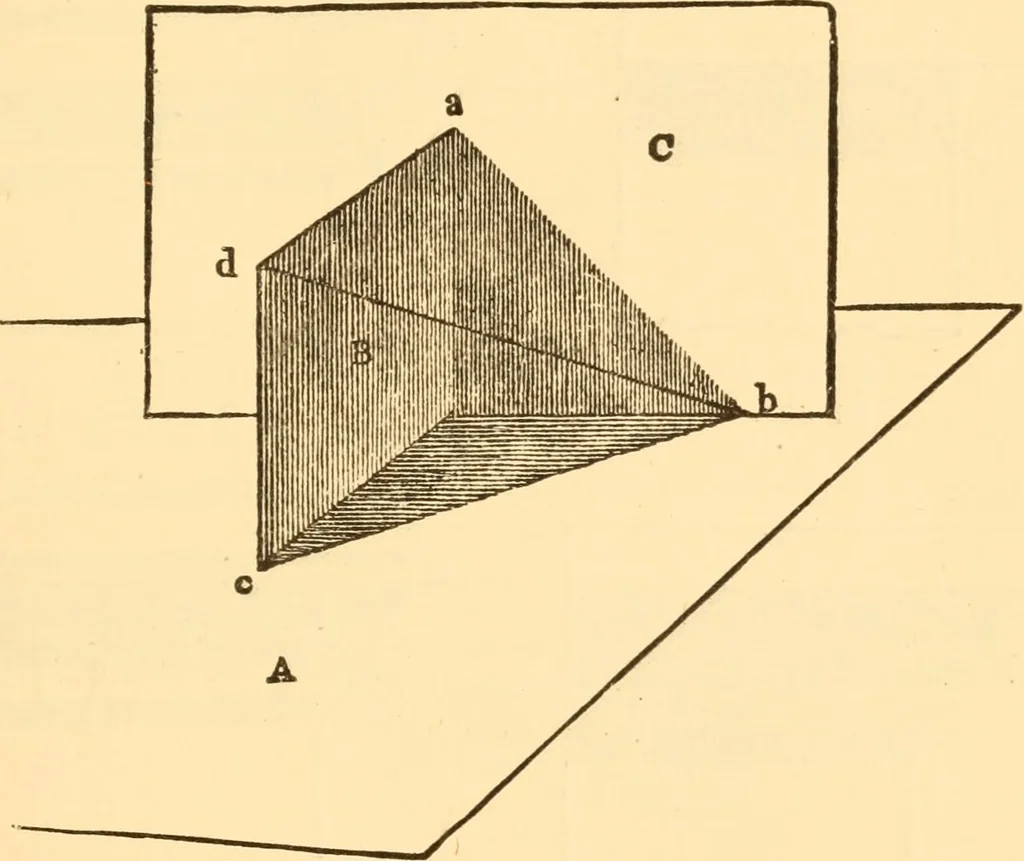

45 degrees, and will give the requisite bevelwhen worked upon the edge of the T-square. One reasonwhy this angle is chosen in preference to another is thatwhen shadows are properly made upon the drawing by it,the depth of every recess is more readily known, since thebreadth of shadow and the depth… … Fic;. 420. while those parts which are deprived of light by the inter-position of other bodies are in shadozv. 564.—To Find the L,ine of l^liadow on Mouldings andother Horizontally Straig[ht Projections.—Figs. 421, 422,423, and 424 represent various mouldings in elevation, re-turned at the left, in…
