The American house carpenter. A treatise on the art of building. Comprising styles of architecture, strength of materials, and the theory and practice of the construction of floors, framed girders, roof trusses, rolled-iron beams, tubular-iron girders, cast-iron girders, stairs, doors, windows, mouldings, and cornices; together with a compend of mathematics. A manual for the practical use of architects, carpenters, stair-builders, and others (1880)
Hatfield, R. G. (Robert Griffith), 1815-1879, Hatfield, O. P., ed · New York, J. Wiley & sons · leaf 70

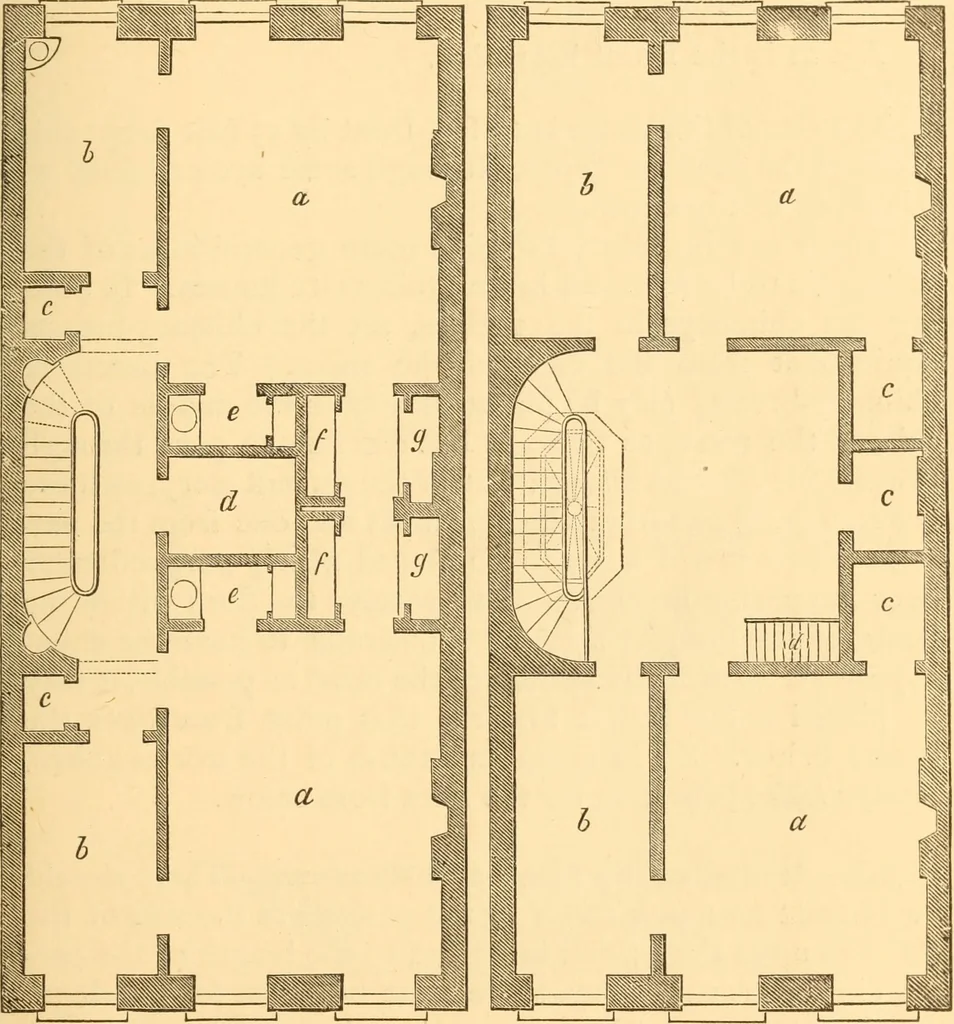

Fig. 17. SECOND STORV. City Dwelling. UPPER STORIES OF A CITV HOUSE. Fig. 18 is the Third Story. a, a, are chambers, 15 by 19 feet. b, b, are bed-rooms, /i by 13 feet. c, r, are closets. d, is a linen-closet, 5 by 7 feet. 41 … Fio. 18. Fi(i. 19. THIRD STORV. City Dwelling. POURTH STORY e, Cy are dressing-closets./,/, are wardrobes.g, g, are cupboards. Fig. 19 is the Fourth Story.a, a, are chambers, 14 by 17 feet. 42 ARCHITECTURE. b, b, are bed-rooms, 8^ by 17 feet. <r, c, c, are closets. d, is the step-ladder to the…
Carpentry · Architecture · Building
