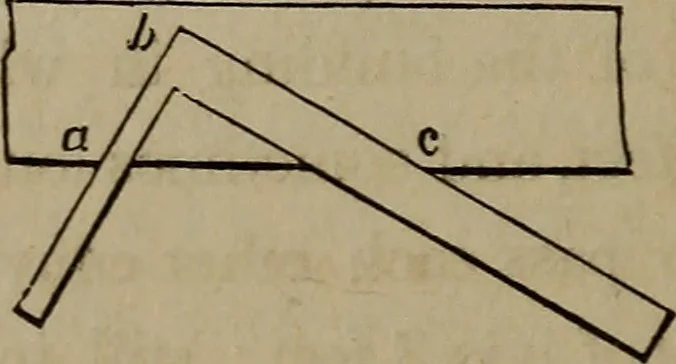

rary is thecase, the whole distance given for the treads must be divided bythe number of treads required. On account of the upper flooiforming a step for the last riser, the number of treads is alwaysone less than the number of risers. Having obtained thisrise and tread, the pitch-board may be made… … Fig 286. equal to the rise, and b c equal to the tread; mark along thoseedges with a knife, and cut it out by the marks, making the edgesperfectly square. The grain of the wood must run in the directionindicated in the figure, because, if it shrinks a trifle, the rise andthe tread will be equally…
