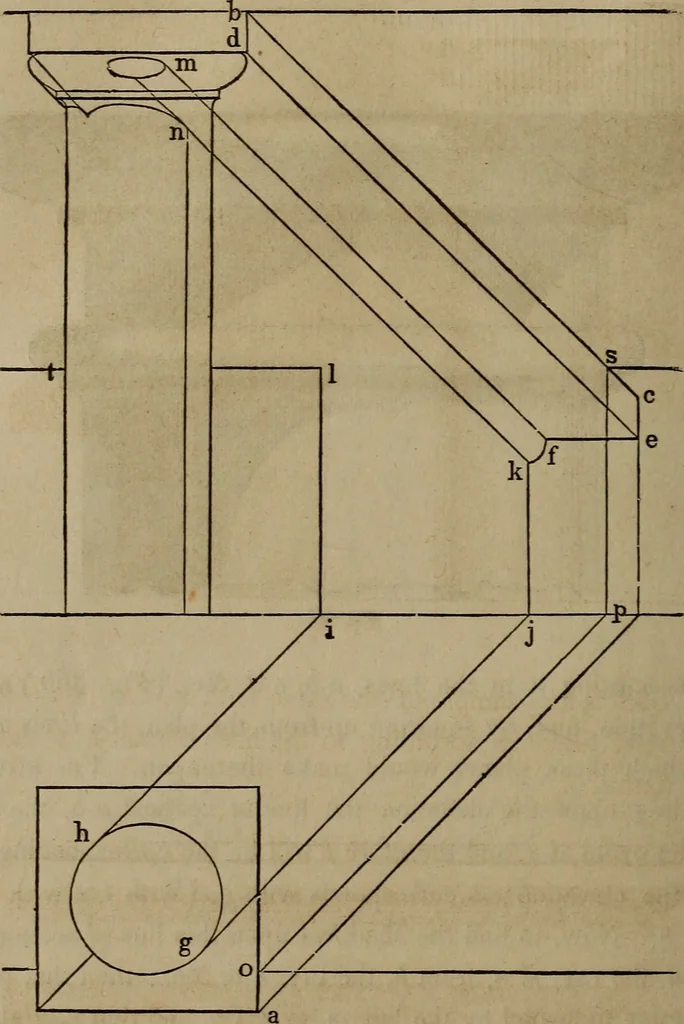

ction of thefigure, it will be seen that the same process is applied to each lineof section, and in that way the points, p, r, t, u, v, to, x, as alsc1, 2, 3, (fee, are successively found, and the lines of shadowtraced through them. Fig. 361 is an example of the same capital with all the… … Fig. 862. rays from a and &, {Fig. 362,) and find the point, c, as in tlieprevious examples; from d^ draw the ray, d e, and from e, thehorizontal hne, e f; tangical to the curve at g and A, draw therays, g j and h i, and from i and j, erect the perpendiculars, i Iand j k; from tti and n, draw…
