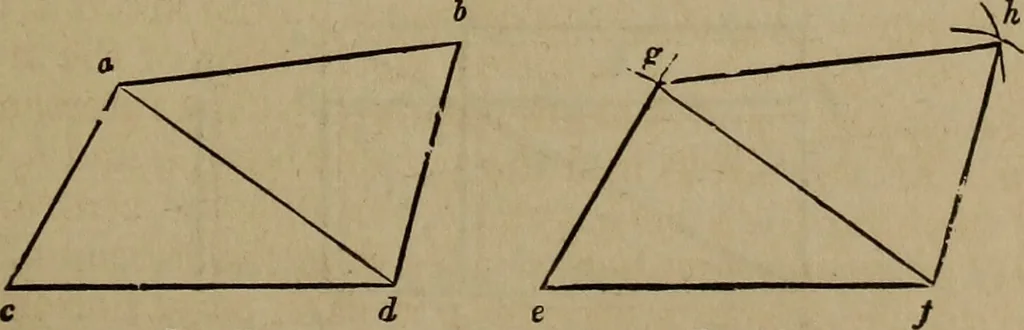

Fig. 64. 99.—To consi/ruct a triangle whose sides shall he severallyequal to three given lines. Let«, h and <?, {Fig. 64,) be the givenlines. Draw the line, d e^ and make it equal to c ; upon e^ withh for radius, describe an arc at f; upon d^ with a for radius,describe an arc intersecting the… … rig. 65. Fig. 66. 38 PRACTICAL GEOMETRY. 100.— To construct a figure equal to a given, right-lined figure. Let abed, {Fig. 65,) be the given figure. Make ef, {Fig. 66,) equal to c d ; upon /, with d a for radius, describe an arc at g; upon e, with c a for radius, describe an arc intersecting the…
