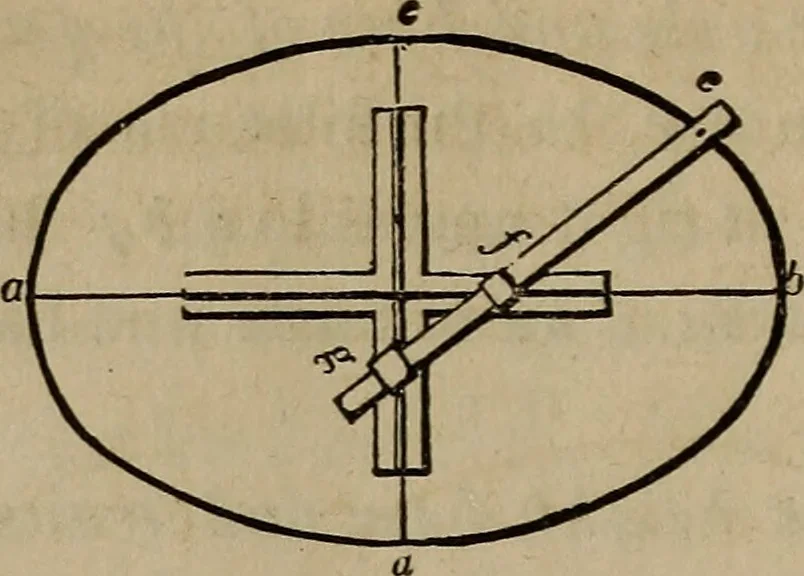

fg and g f show the position of the string when the pencil arrives at g. This method, when performed correctly, is perfectly accurate;but the string is liable to stretch, and is, therefore, not so good touse as the trammel. In making an ellipse by a string or twine,that kind should be used which… … Fis. SI 116.— The axes being given,, to describe an ellipsis with atrammel. Let a b and c c?, [Fig. 81,) be the given axes. Placethe trammel so that a line passing through the centre of thegrooves, would coincide with the axes ; make the distance fromthe pencil, e, to the nut,/, equal to half c d ;…
