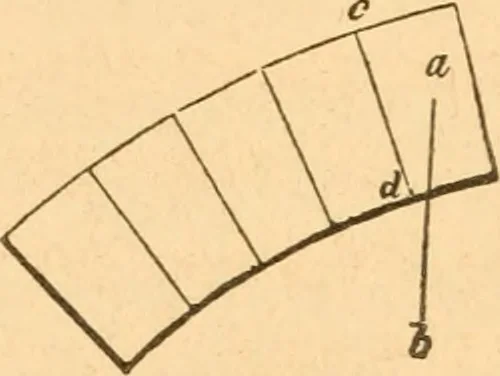

in mortar or not. For general pur-poses, the point at which the pressure commences, may be con-sidered to be at that joint which forms an angle of 32 degreeswith the horizon. At this pumt, the pressure is inconsiderable, 184 AMERICAN HOUSE-CARPENTER. but gradually increases towards the crown. At an… … Fig. 232. the arch-stone, does not fall within its bed, c d, the pressure maybe considered equal to the whole weight of the stone. This willbe the case at about 60 degrees, when the depth of the stone isdouble its breadth- The direction of these pressures is consid-ered in a line with the radius of…
