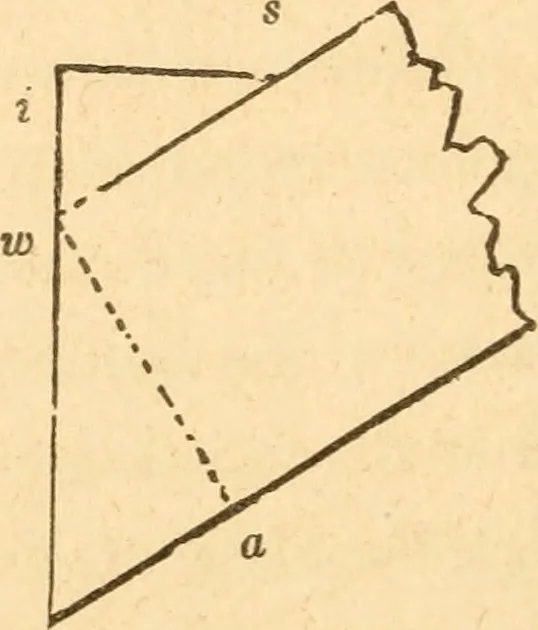

F\-^ 2S8. r to e c on the top. This ekicidates Fig: 276 ; at which the lines,h 9 and i 8, correspond to h 9 and i 8 in this figure. … Fig. 289. 389.— To find the hevil for the edge of the plank. Theplank, before the face-mould is applied, must be bevilled accord-ing to the angle which the top of the imaginary block, or prism,in the previous figures, makes with the face. This angle is de-termined in the following manner : draw w…
