The American house carpenter: a treatise upon architecture, cornices and mouldings, framing, doors, windows and stairs. Together with the most important principles of practical geometry (1852)
Hatfield, R. G. (Robert Griffith), 1815-1879 · New York, J. Wiley · leaf 264

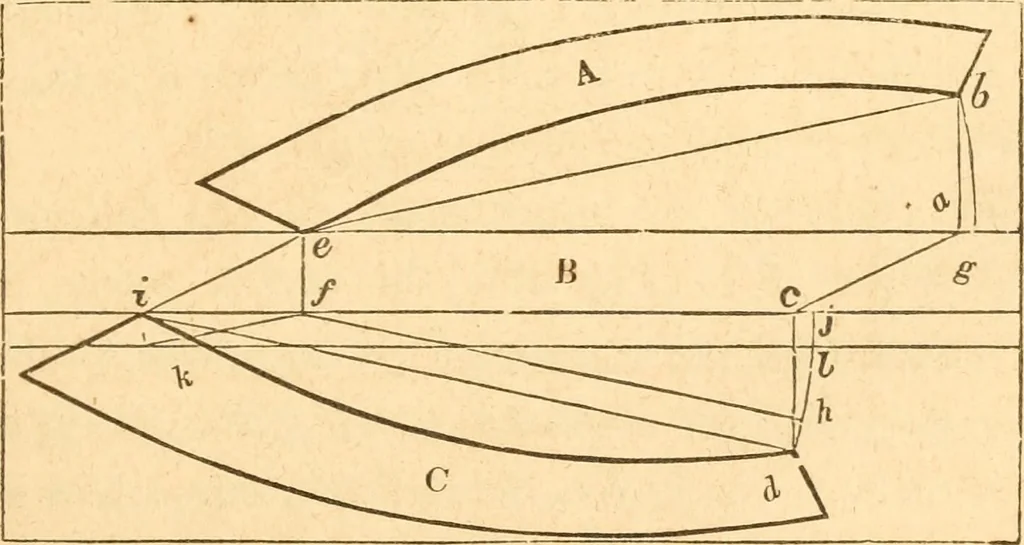

rule, then,for taking these points, is to take in each section the one that isnearest to the line, g p. Sometimes the line of intersection, g p,happens to come almost in the direction of the line, e r : in suchcase, after finding the line, see if the points from which theheights were taken agree… … Fig. -297. 394.—To appl]/ the face-mould thus found to the plank.The face-mould, when obtained by this method, is to be appliedto a square-edged plank, as directed at Art. 383, with this differ-ence : instead of applying both tips of the mould to the edge of 248 AMERICAN HOUSE-CARPENTER. the plank,…
Carpentry · Architecture
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
