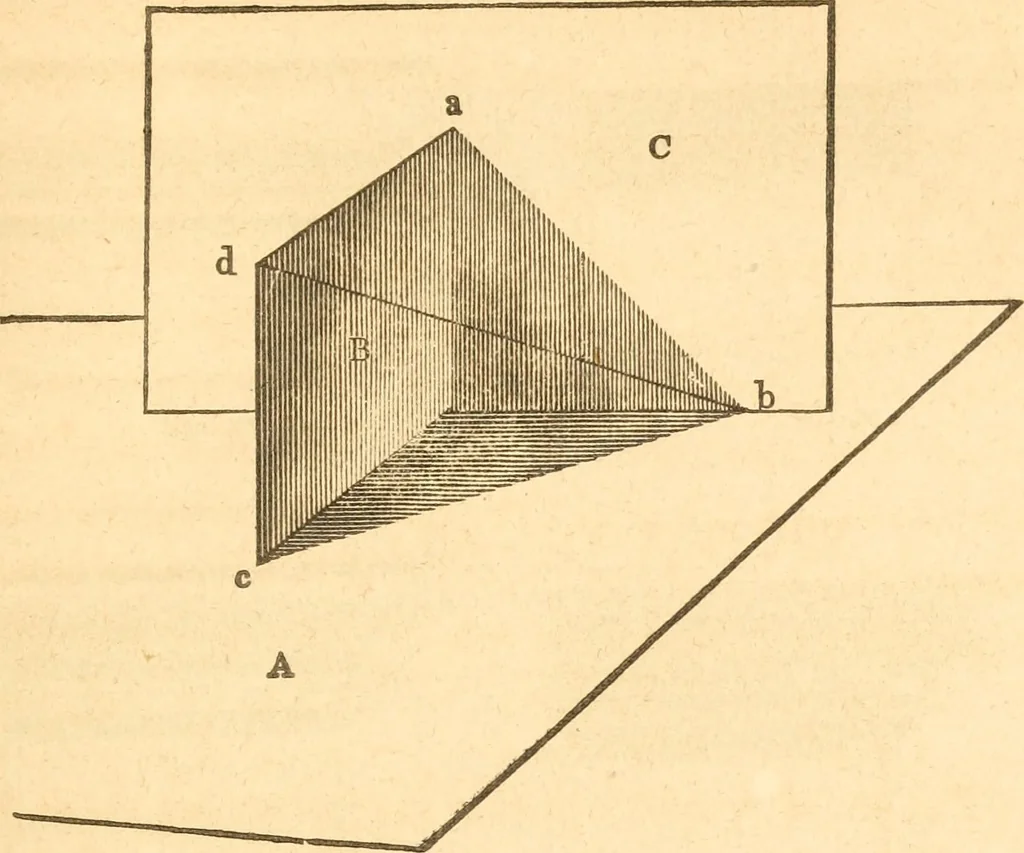

nation of the line of shadow. This is always,in architectural drawing, 45 degrees, both on the elevation and theplan; and the sun is supposed to be behind the spectator, andover his left shoulder. This can be illustrated by reference toFig. 304, in which A represents a horizontal plane, and B and… … Fig. 304. line, a b, is drawn at an angle of 45 degrees with the horizon, andthe hne, c b, at the same angle with the vertical plane, B. Theplane, B, being a rectangle, this makes the true direction of thesuns rays to be in a course parallel to d b; which direction hasbeen proved to be at an angle…
