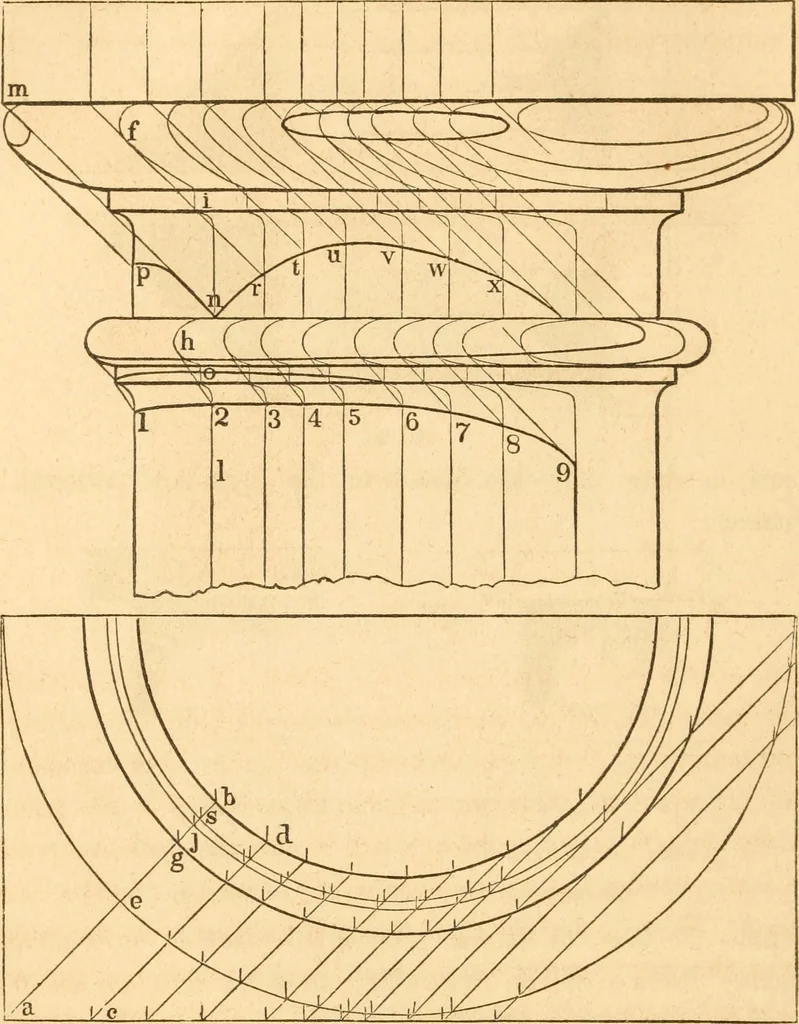

tween a and/, as i, and fromthis, as also from a corresponding point, ?2, draw the rays, i r andn s; from r, and from d, erect the perpendiculars, r s and d o :through the points, e, s, and o, trace the curve as shown in thefigure : then the extent of the shadow v/ill be defined. 426.—To find the… … Fisr. 329. 427.—To find the shadows on the capitcd of a column. Thismay be done according to the principles explained in the examplesalready given ; a quicker way of doing it, however, is as follows.If we take into consideration one ray of light in connection withall those perpendicularly under and…
