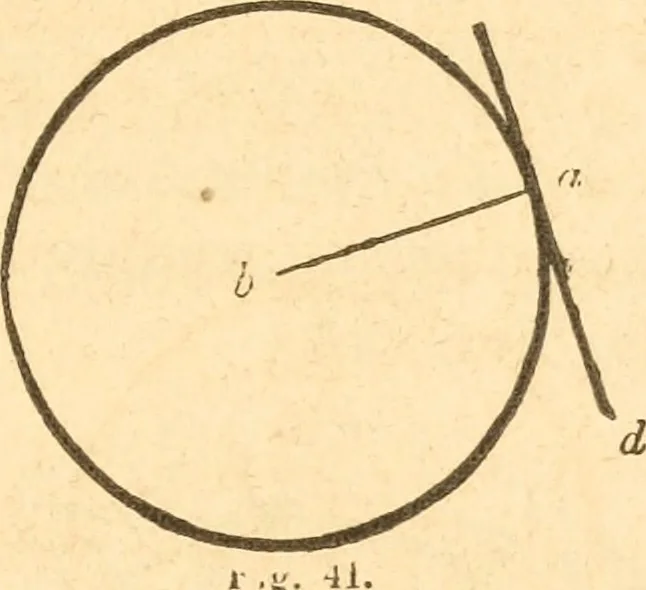

to a b ; join c and b ; bisect c 6 at a—which will be the centre of the circle. If a circle be not too large for the purpose, its centre may veryreadily be ascertained by the help of a carpenters-square, thus :app y the corner of the square to any point in the circumference,as at a ; by the edges… … 82.—At a given jjoiiil in a circle, to draw a tangent thereto.Let a, {Fig, 41,) be the given point, and b the centre of the cir-cle. Join a and b ; through the point, a, and at right angles toa bj draw c d ; c dis the tangent required.
