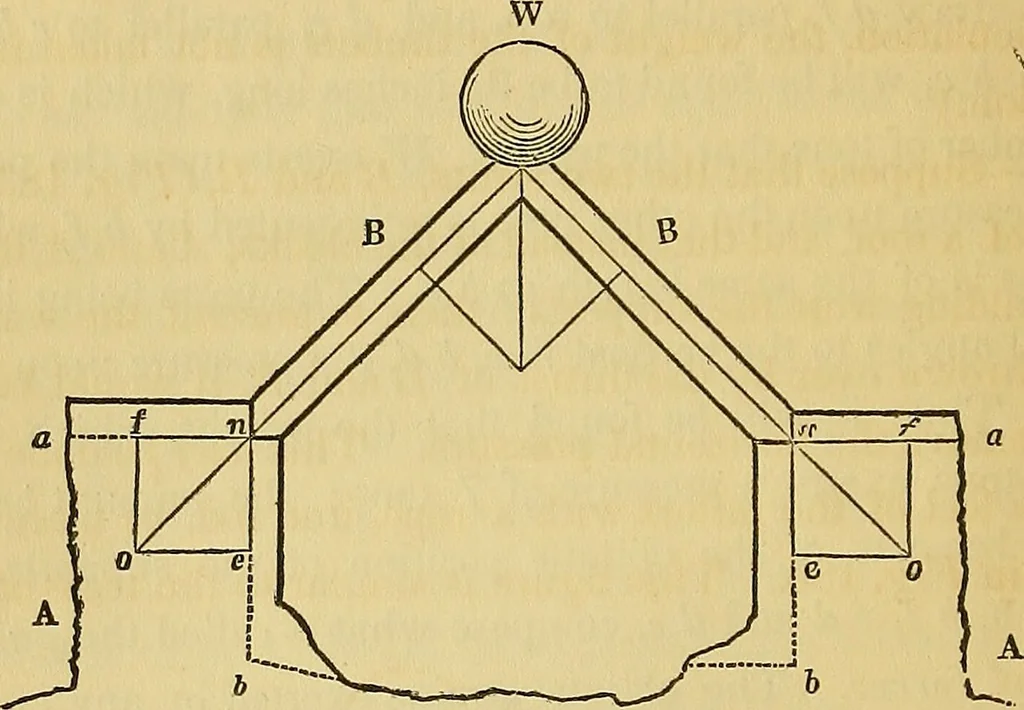

timbersaccording to their position, will be readily formed by drawingvarious designs of framing, and estimating the several strains inaccordance with these principles. In Fig. 184, the struts areframed into a third piece, and the weight suspended from that.The struts are placed at a different angle… … Fig.185. 249.—In Fig. 185, the weight, TF, exerts a pressure on thestruts in the direction of their length; their feet, n, n, have, there-fore, a tendency to move in the direction, n o, and would so move,were they not opposed by a suifficient resistance from the blocks,A and A. If a piece of each…
