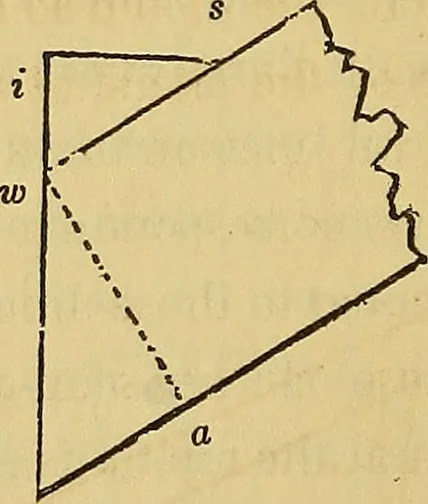

Fig. 288. r to e c on the top. This ehicidates Fig. 276 ; at which the lines,h 9 and i 8, correspond to h 9 and i 8 in this figure. … Fig. 289. 389.— To find the bevil for the edge of the flank. Theplankj before the face-mould is applied, must be bevilled accord-ing to the angle which the top of the imaginary block, or prism,in the previous figures, makes with the face. This angle is de-termined in the following manner : draw w…
