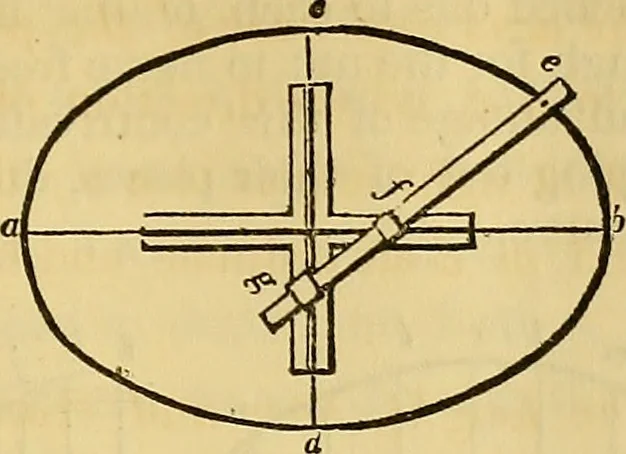

fg and g f, show tha position of the string when the pencil arrives at g. This method, when performed correctly, is perfectly accurate;but the string is liable to stretch, and is, therefore, not so good tonse as the trammel. In making an ellipse by a string or twine,that kind should be used which… … Fig. 81 116.— The axes being given, to describe an ellipsis with atrammel. Let a b and c d, {Fig. 81,) be the given axes. Placethe trammel so that a line passing through the centre of thegrooves, virould coincide with the axes ; make the distance fromthe pencil, e, to the nut,/^ equal to half c d ;…
