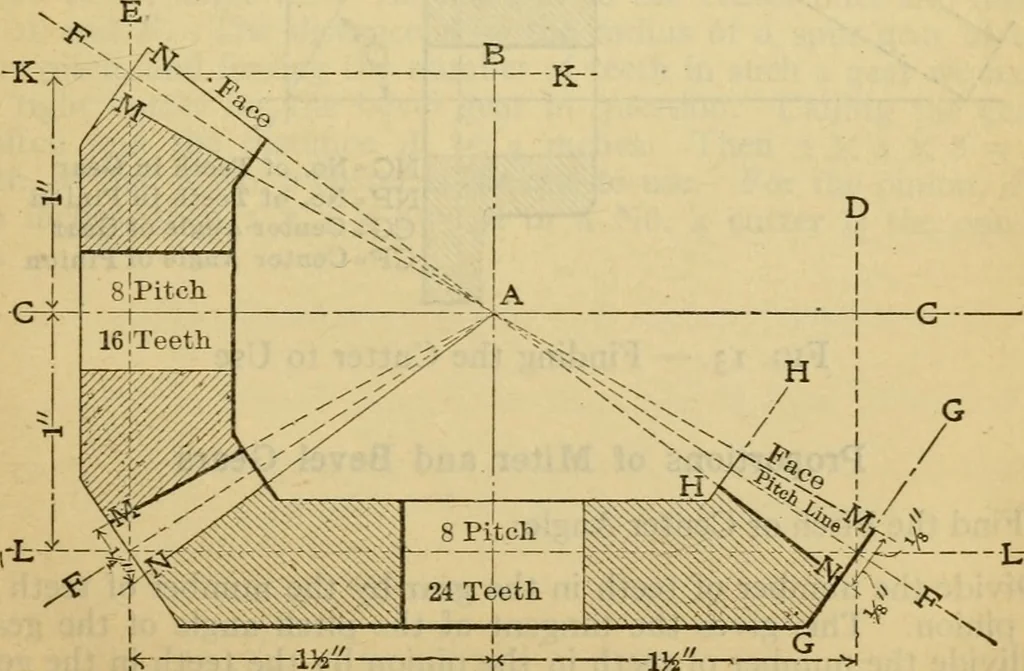

re or should be radial so that they are longer at theouter end. The names of parts are sho\ATi in Fig. ii. These shouldbe noted carefully, particularly the face angles. The earlier editionsmeasured/oce angle at right angles to the axis, but this is now changedas shown. LAYING OUT BEVEL GEAR BLANKS… … Fig. 12. — Laying out Bevel Geaib 122 GEARING side oi B B and parallel to it; the distance from D D to E E beingas many eighths of an inch — if it be 8 pitch — as there are to beteeth in the gear. In the example the number of teeth is 24; there-fore the distance from D D to E E will be \*-, or i|…
