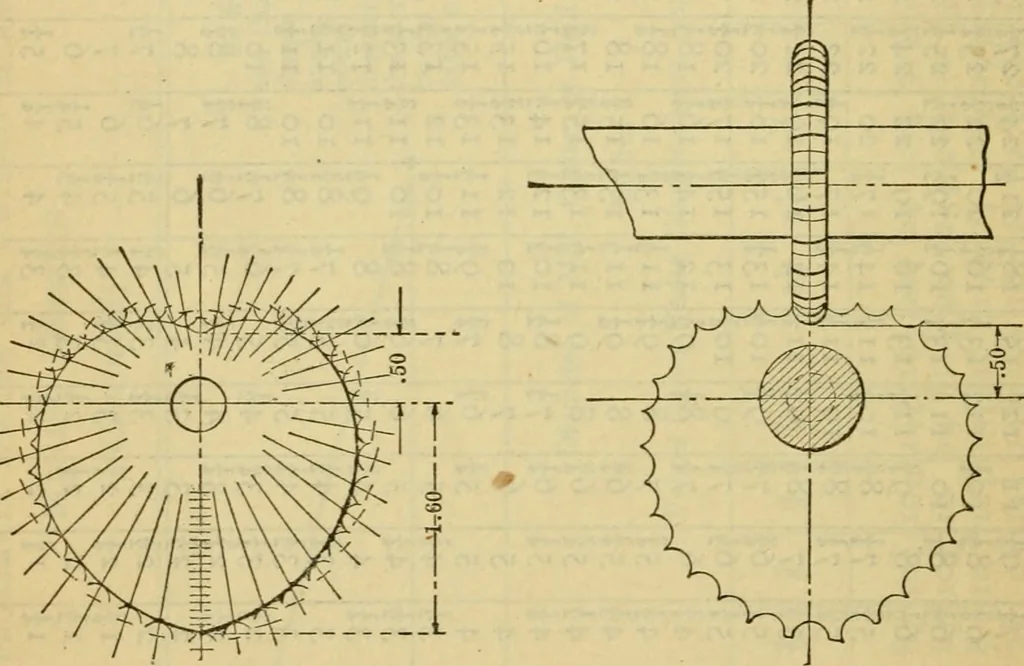

ve the outside stock, being sure to leave sufficient stock to over-come errors in laying out. Put the cam on the nut arbor and tightensecurely. If the roll of the cam is | radius, select a milling cutterhaving the same radius, as the roll of the cam must come to the lowest:point, which it would not… … Fig. I. — Method of LayingOut Cam Fig. 2. — Position of Cam and Cutler when Commencing to Mill Selecting an Index The next operation is to place the cam between centers on themilling machine, having the cutter in line with the vertical radiusof the cam, at its lowest point. Next choose an index…
