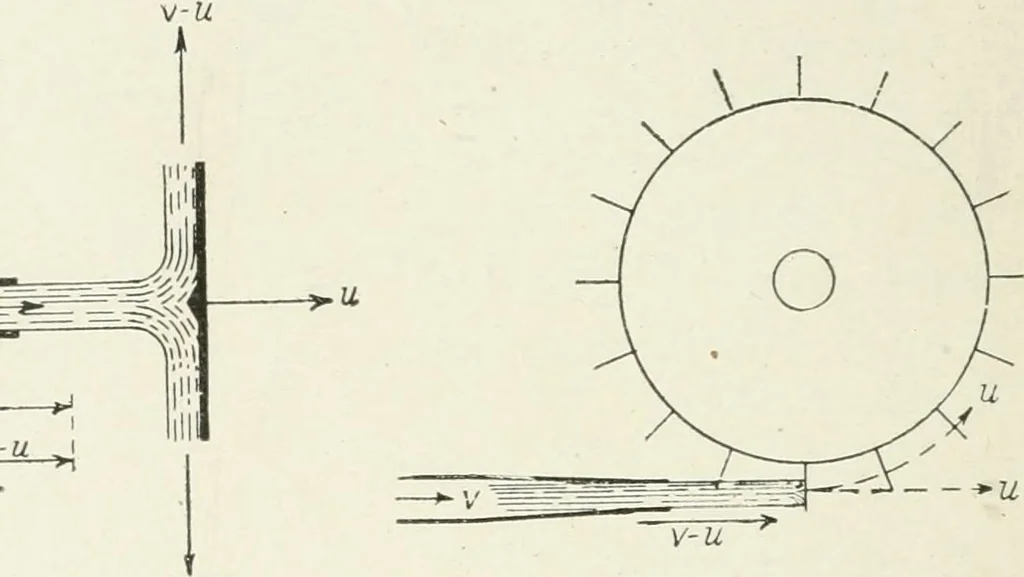

less than the stream discharge. 28 WATER-POWER DEVELOPMENT 35. Case I. Jet Striking a Moving Flat Vane Normally.Let a jet (Fig. 20) whose absolute velocity is v, and cross-section o,imj^inge normally upon a smooth surface which is itself moving witha uniform absolute velocity u in the same… … Fig. 20. .Tet Striking a Moving Flat Vane Fig. 21. Jet Striking Flat Kadial Vane.s ofNormally. a Revolving Wheel. JV=wav; the weight of water striking the surface per second is i^;a{v—u),iiiv represents the weight of a cubic unit of water; accordingly,the dynamic pressure exerted upon the surface,…
