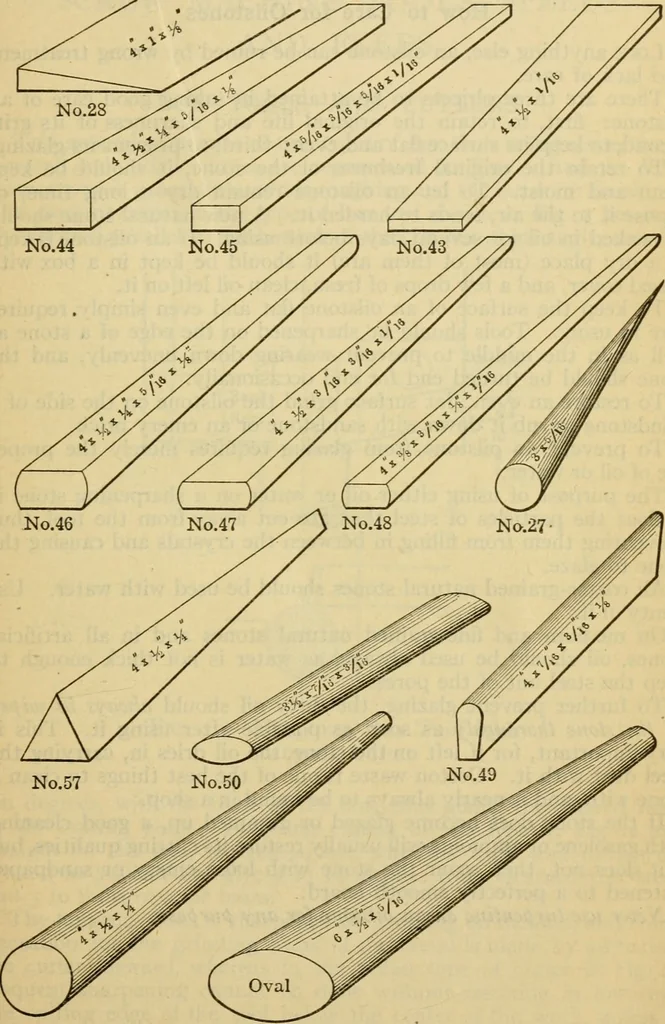

No.O - 8x2x1 No.29 -exsxi N0.2 Fig. I. — Shapes of Oilstones A few shapes and sizes for curved-edge wood-working tools are Nos.ro, iij 12, 13, 14, 15, in Fig. i. Rectangular shapes for straightedge SHAPES OF OILSTONES 243 tools like chisels, plane bits, planer knives, scrapers, paper-cuttingknives… … No.58 No.51 Fig. 2. — Shapes of Oilstones Fig. 2 shows some of the sizes and shapes particularly adapted formold and die work, watch and clock makers tools, etc. Other 244 GRINDING AND LAPPING shapes suitable for such purposes are shown by Nos. 4, 5, 6, 7, 8, 9and 26 in Fig. i and No. 51 in Fig. 2.…
