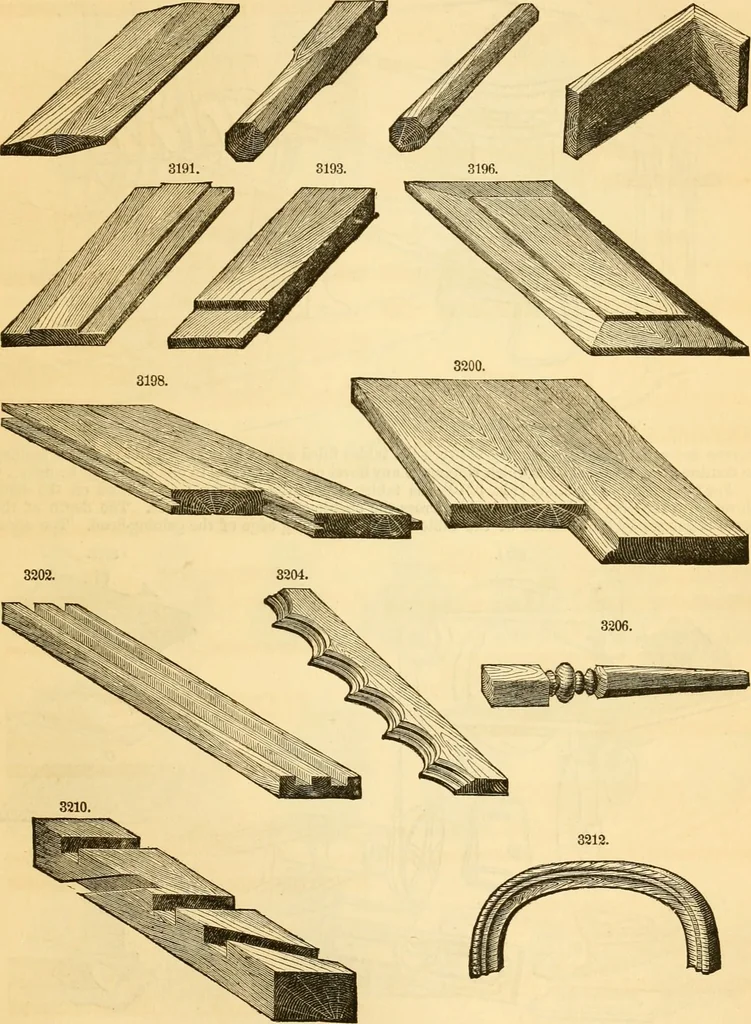

fenceattached to a side board adjusted to the front head, forming a guide for it. By placing the fencesat an angle, tongues and grooves can be cut to any angle. The operation shown in Fig. 3199 is that of making rule or table joints (Fig. 3200), performed bythe same process as in hand-matching,… … gaining-head, and one or more grooves (Fig. 3202) can be cut, as in window-frames. In grooving,the tables are on the same level, and the depth of the groove is gauged by the distance the tablesare lowered below the periphery of the cutters. Fig. 3203 shows the tables arranged for working waved…
