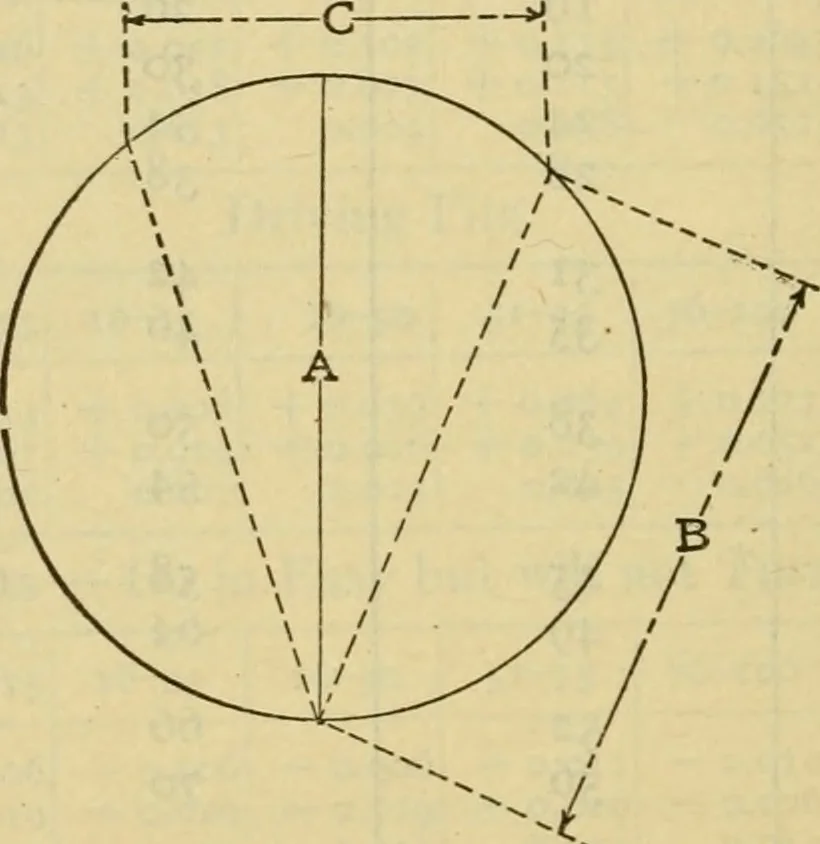

s the diameter of the bore, Bthe caliper setting and C the side play permitted the caliper in the hole. In the table below is given a list of the reduced dimensions fordifferent amounts of side play of the calipers in a 12-inch hole.From this, the dimensions may be obtained for holes of other… … Fig. 9. — Side Play of the Calipers Table of Reduced Diameters Indicated by Inside CalipersFOR Different Amounts of Side Play in a i 2-inch HoleSide play 0.1 11.9999 0.2 II.9991 0.4 11.9983 0.6 11.9962 0.8 11.9933 i.o 11.9895 1.2 11.9849 1.4 11-9795 1.6 11.9730 1.8 11.9660 2.0 11-9579 2.2 .11.9490…
