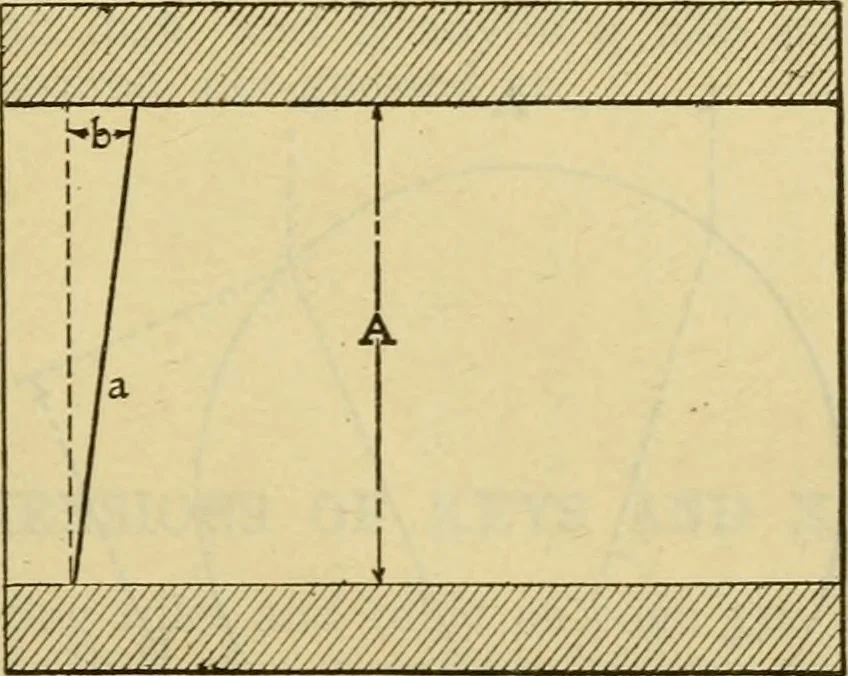

cks of assuming aposition square or at a right angle to the axis of the hole. It is an easy matter to make a table as suggested. It is onlynecessary to find the different lengths for the hypotenuse a for theright-angle triangle of which A is the constant base and b the per-pendicular, taking b at… … Fig. 10. — Inclination of the Calipers for Press Fits Table for Axial Inclination of Calipers in Allowing forShrink or Force Fits in a i 2-inch Hole Inclination of calipers ^ i inch 12.00065 i inch 12.00260 f inch 12.00580 I inch 12.01040 t inch 12.01626 f inch 12.02340 I inch 12.03180 I inch…
