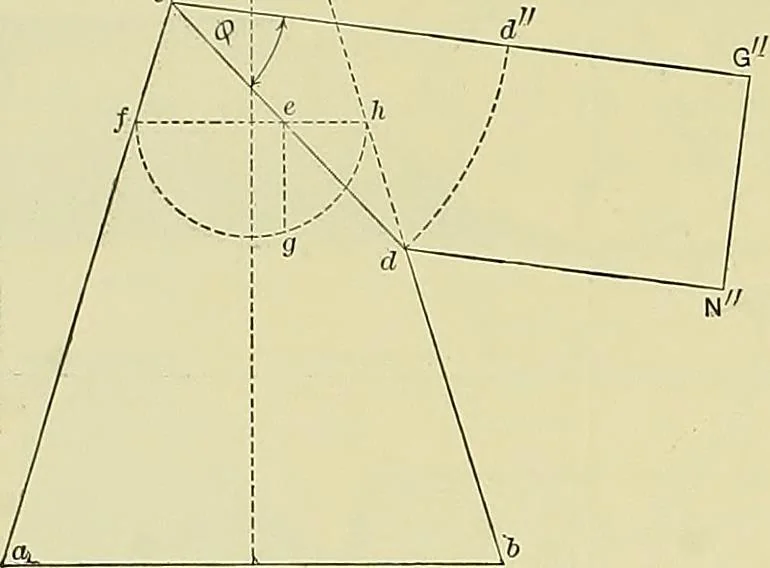

the latter. Let vab be a vertical cone, and c d the ellii^tical i^lanesection on which the cylindrical piece is to fit. The diameter of the desired cylinder will eqvxalthe shorter diameter of the elliiDse c d. To find this bisect c d at e; draw fh horizontally through e, and on it as a diameter…
