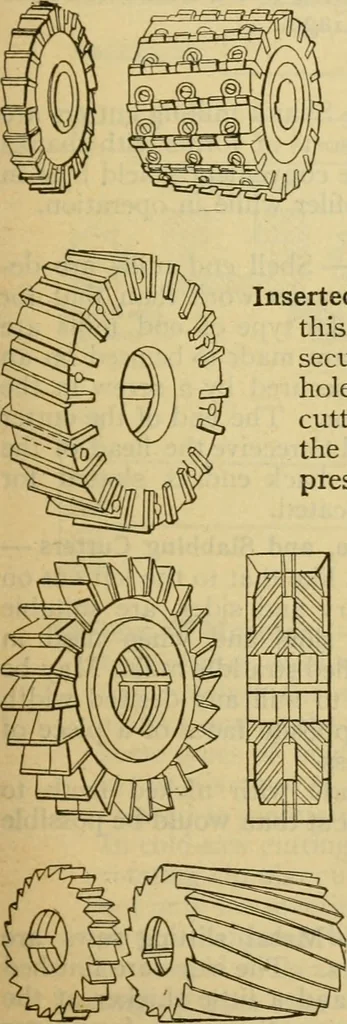

out. Inserted Tooth Cutter (Pratt & Whitney). Inthis type of cutter the teeth or blades aresecured in position by taper pins driven intoholes between every other pair of blades; thecutter head being slotted as shown to allowthe metal at each side of the taper pin to bepressed firmly against the… … Plain Cutters — These cutters are formilling flat surfaces. When over |inch wide the teeth are usually cutspirally at an angle of from 10 to15 degrees, to give an easy shearingcut. When of considerable lengthrelative to diameter they are calledslabbing mills. 586 CUTTERS. MILLING — Continued Rose…
