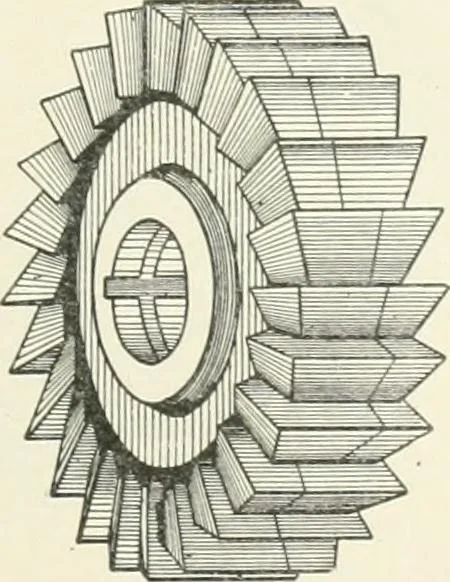

of inter-locking, see iig. lUi, is especially valu-able when cutting slots which must lieof a definite width. An ordinary cutterwill wear away by use, or by grinding,and thus lose its correct size. The thick-ness of interlocking cutters can be main-tained by means of very thin washers, and, due to… … Fig. 194. 138 MACHINE SHOP WORK may be of any desired form, and can be made to produce a varietyof shajies. The so-called angle cutters, Fig. lltO, are employed intbe manufacture of cutters, and, when making spiral cntters. musthave an angle on both sides. The customary angle in such casesbeiritj…
