American machinists' handbook and dictionary of shop terms : a reference book of machine shop and drawing room data, methods and definitions (1914)
Colvin, Fred H. (Fred Herbert), 1867-1965, Stanley, Frank A. (Frank Arthur), b. 1874 · New York : McGraw-Hill book company ; London : Hill · leaf 639

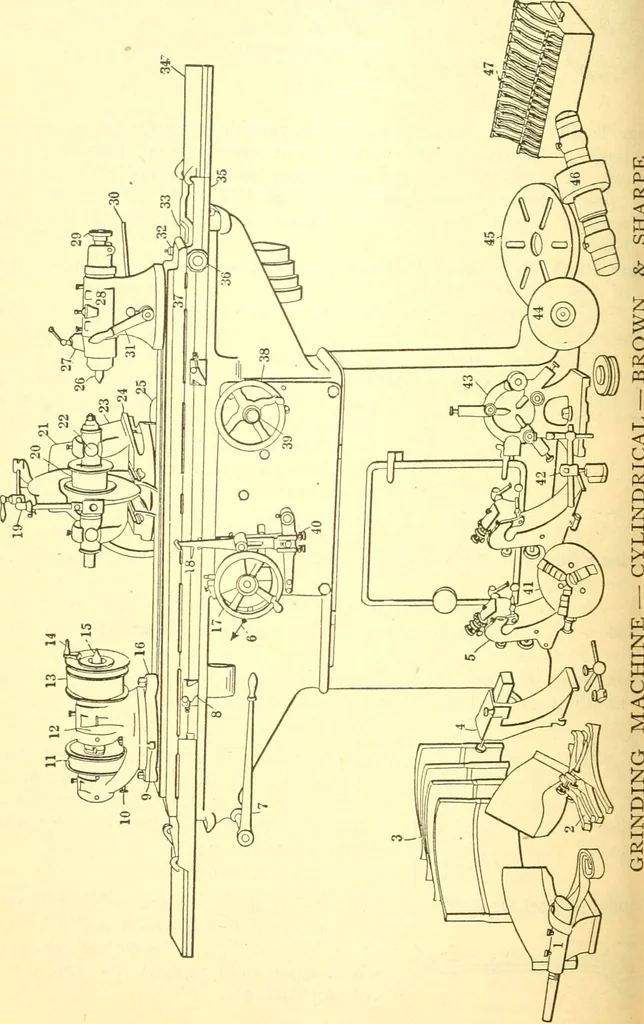

6io GRINDING MACHINE … GRINDING UACnmE — Continued 6n Grinding Machine — Parts of I. Internal grinding fixture. 25- Wheel-stand slide. 2. Water guard supports. 26. Footstock center. 3- Water guards. 27. Diamond tool-holder. 4- Plain back rests. 28. Footstock. 5- Universal back rest. 29. Tension adjusting knob. 6.…Machine-shop practice
