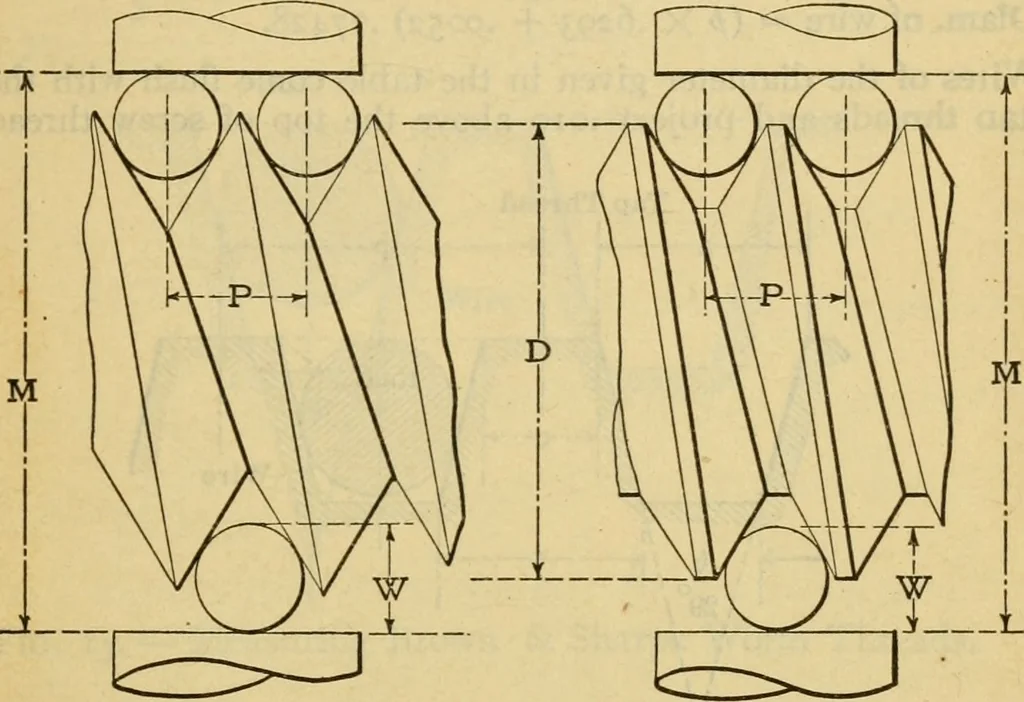

.09472 56 .03093 .02706 18 .09622 .08419 64 .02706 .02368 20 .08660 .07578 80 .02165 .01894 22 .07872 .06889 100 .01732 .01516 24 .07216 .06314 MEASURING METRIC THREADS 37 * MEASURING METRIC SCREW THREADDIAMETERS The tables and formulas given herewith in connection with Fig. 15should be of value to… … Formulas: For V Threads D = (M - 3 W) + 1.732 P.M = (D - 1.732 P.) +3W. For Threads with Flat Topand Bottom equal to 5 ofthe Pitch D = (M -3W) +1.SISS P. M = (.D - i.siSS P.) 4- 3 W. Fig. 15. — Measuring Metric Threads Constants for Use in Measuring Metric Screw Threads BY the 3-W1RE System…
