Machine drawing; a text and problem book for technical students and draftsmen (1921)
Svensen, Carl L. (Carl Lars), 1884- · New York, D. Van Nostrand company · leaf 72

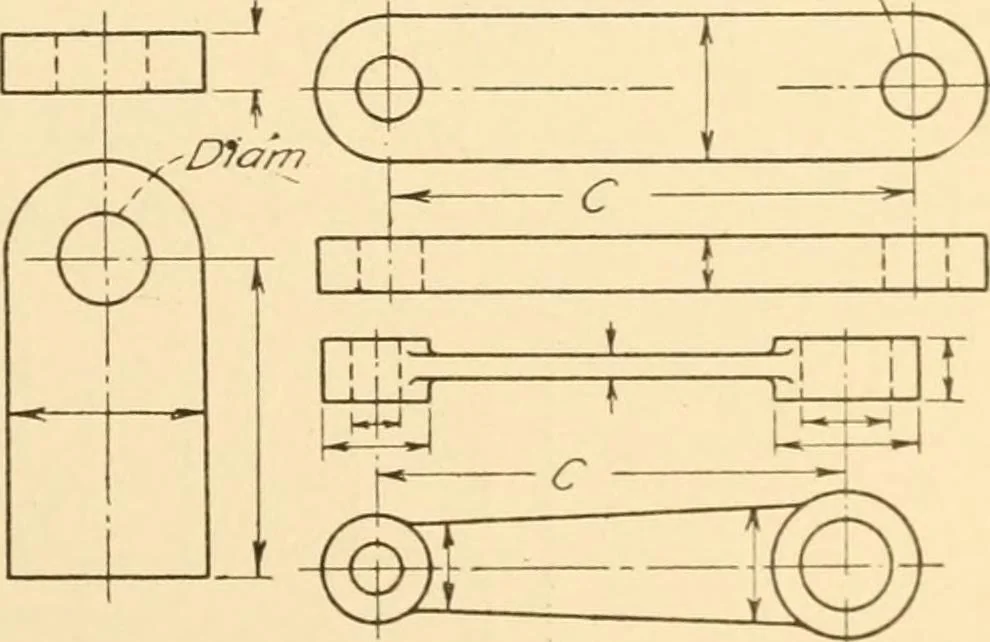

Fig. 113. Elements of Dimensioning—The Six Cases. 62 MACHINE DRAWING on one view and the third on one of the other views. In general dimen-sions are placed between views rather than to one side. The second case is the cylinder, where the diameter and length aregiven on one view. The third case is…
Machinery
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
