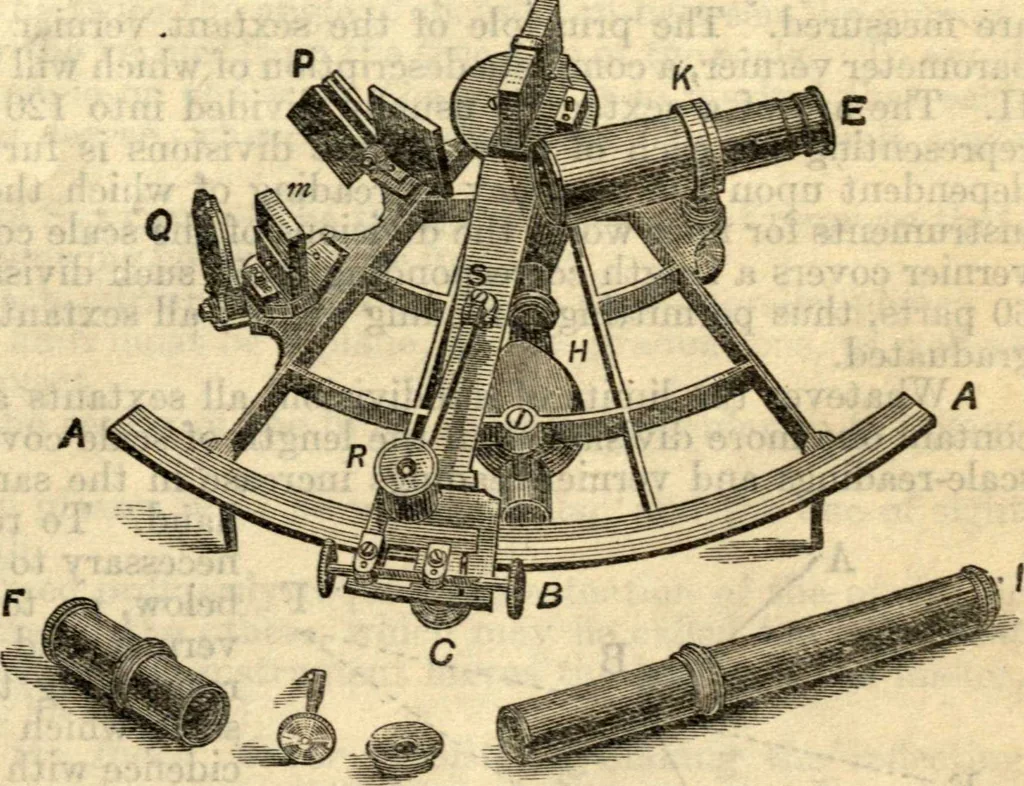

sure for any change of inclination of the index mirror; a reading glass,R, attached to the index bar and turning upon a pivot, S, facilitates the reading ofvernier and scale. The index mirror, M, is attached to the head of the index bar, withits surf ace perpendicular to the plane of the… … FIG. 32. 92 INSTRUMENTS EMPLOYED IN NAUTICAL ASTRONOMY. horizon is observed in measuring altitudes of celestial bodies; it is provided withscrews, by which its perpendicularity to the plane of the instrument may beadjusted. At P and Q are colored glasses of different shades, which may be…
