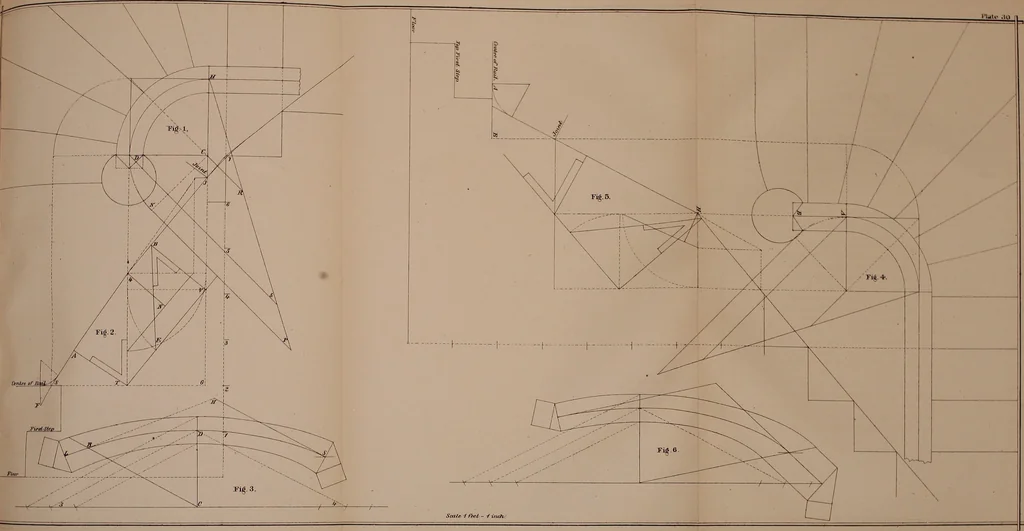

Plate 31 Exhibits the ground plan for a circular staircase ; the wreath in four pieces. To find the common pitch, at Fig. 2, extend the tangent C D to A; at rightangles to A C, draw A J, equal to five risers, join C J ; then C J is the pitchof the tangents, that meet at the joints F C and N. At…
Stair building
