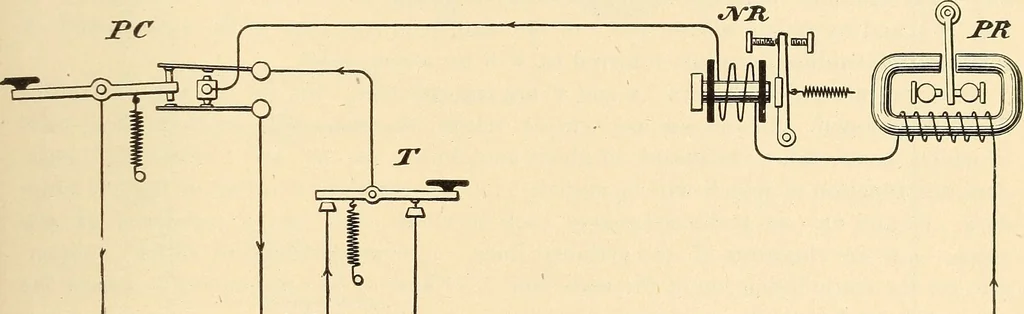

tion with Fig. 160, so that, when the smaller portionof the battery is placed to the line its armature will be withdrawn by the , retractilespring, we can see that, in Fig. 161, the relay ne will be open, and the position ofthe armature of the polar relay will depend on the direction of the current… … ■HwWr/ placed to the line. The result is that the armature of nr is attracted. As, how-ever, the pole-changer has not been opened, the polarized relay has not been affect-ed. It will be observed, however, that should the pole-changer be operated now, itwill reverse the enfire battery. The relays kr…
