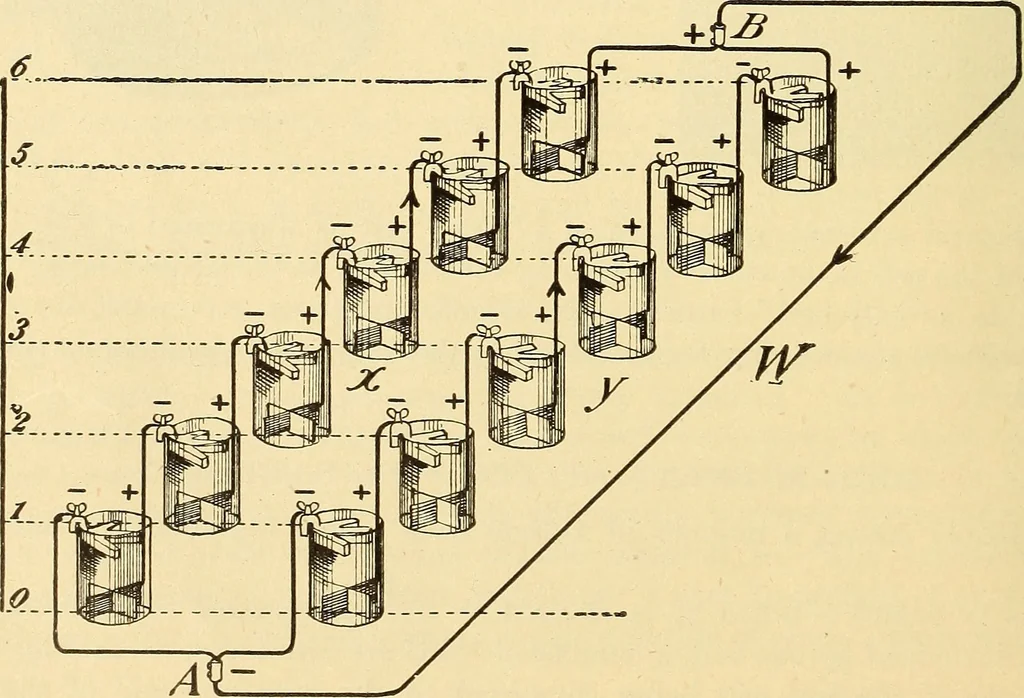

m CELLS IN SERIES. of 6 cells, each, with the negative poleof each row joined at a, and the positive pole of each row Joined at b. When thusarranged the two rows of cells are said to be in multiple, or parallel. FIG 14. … CELLS IN MULTIPLE. DRY BATTERIES. 25 Thus aiTaiiged, each cell of each row adds its e. m. r. to that of its adjoinins:cell, so that each row has at its terminals a difference of potential of 6 volts, as in thecase of the separate row of 6 cells. Fig. 13. But, in the case of the cells in…
