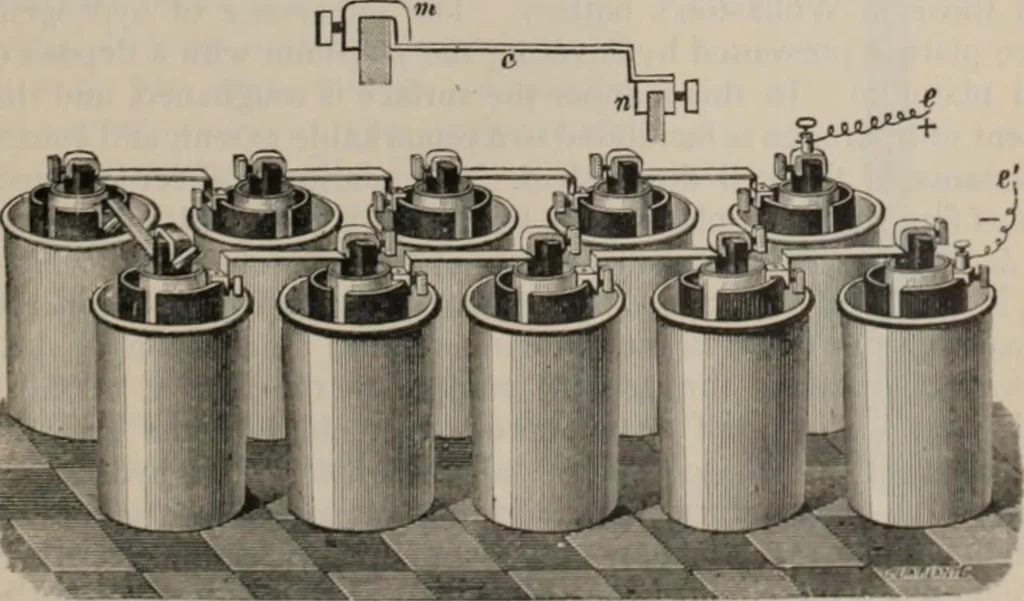

Fig. 813 A single cell of the ordinary dimensions, 20 cm. in height and 9 cm. indiameter, has a resistance of about 0*14 ohm, and an E.M.F. of about1-82 volt (848). When the cells are arranged to form a battery (fig. 814) each carbon isconnected to the zinc of the following cell by means of the… … at one end between the carbon and the clamp, and at the other it is solderedto the clamp «, which is fitted on the zinc of the following cell, and soforth. The clamp of the first carbon and that of the last zinc are aloneprovided with binding screws, to which are attached the wires. The chemical…
