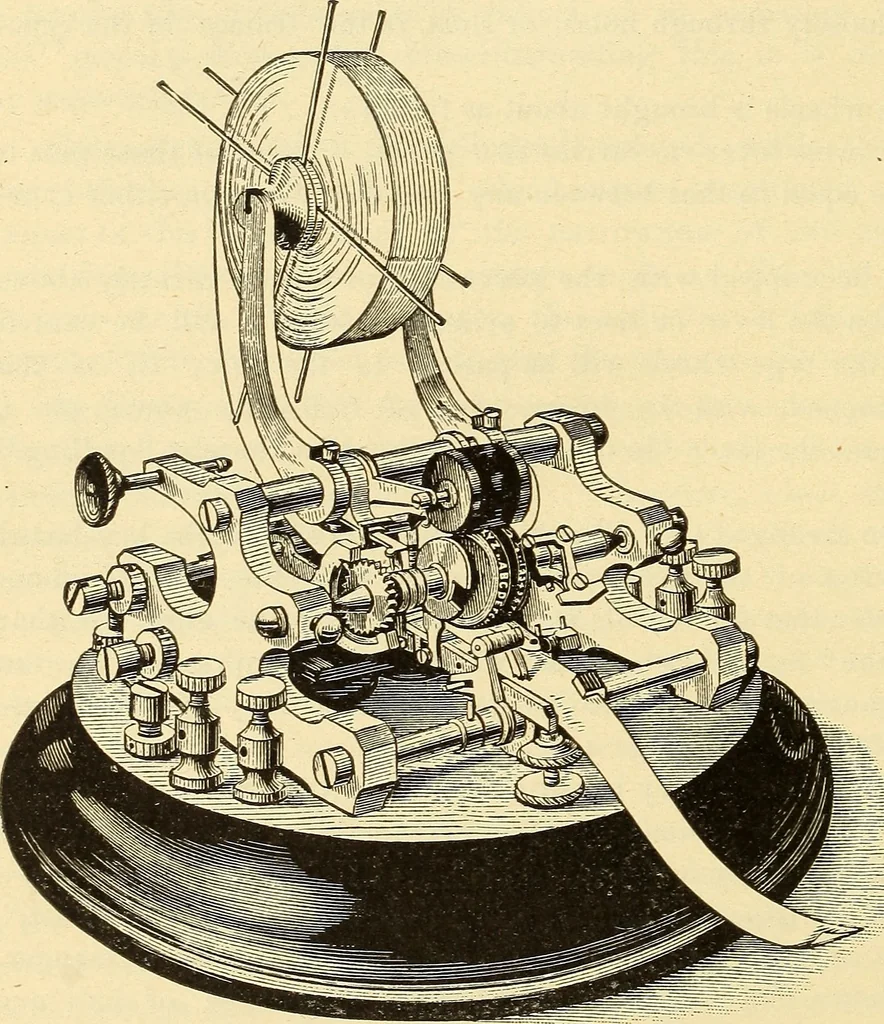

insulatedsegmental wheels, is shownin Fig. 308. In this figure g is a cog-wheel on the shaft s, driven by an electro motor,weights, or a spring. On either side of g two smaller cog-wheels w, w, of equal8ize, are geared. On the shaft with w a toothed wheel a is mounted. Onthe shaft with w another… … EDISON OR UNIVERSAL TICKER. UNIVERSAL OR EDISON TRANSMITTER. 411 lever /; the type circuit with /, as indicated. A contact point c is placedadjacent to /; a contact point c adjacent to /. Owing to the manner in which w ware geared to the wheel g, the rotation of eacli in the direction of the arrows…
