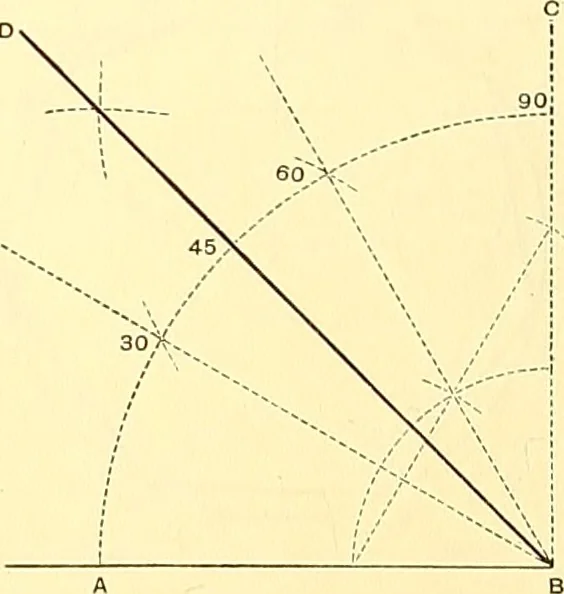

. Prob. 68.—At a point C in the line A B, to male an angle of 60°,I; 45°, 30, or 15°. Draw any line A B. With centre C and with any radius, de-scribe an arc, cutting A B in I; with centre I, same radius, cut theIt arc in D; draw D C ; it will make an angle of 60° with A B. Bisectangle D C A by line…
Geometrical drawing
