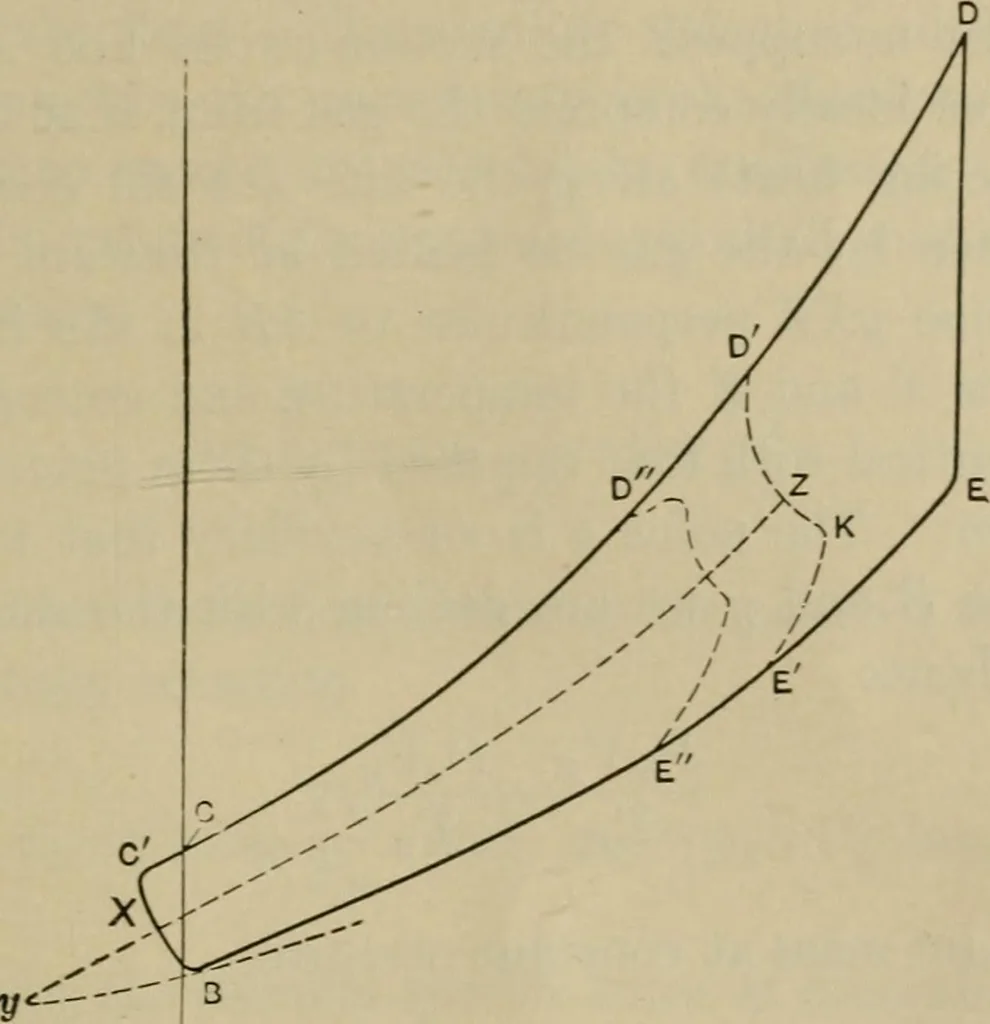

differs in GAS-EXGIXES AND GAS-PRODUCERS. 491 a few particulars. The practical card, Fig. 1S%, differs verymaterially from the theoretical one, taking some such form asABCDFBA, or, when the engine is not properly adjusted, somesuch form as that indicated by ABCDEBA. The entropy analysis given below… … Fig. 258. of B is sufficient to indicate the thermal characteristics of the fullgas charge. If the compression is truly adiabatic, BC is thecourse of our tracing-point. If the walls absorb heat there will bea loss of entropy, and the tracing-point will wander to the left.The charge is fired and the…
