American text books of art education : Geometrical drawing (1873)
Smith, Walter, 1836-1886 · Boston : James R. Osgood & Co. · leaf 75

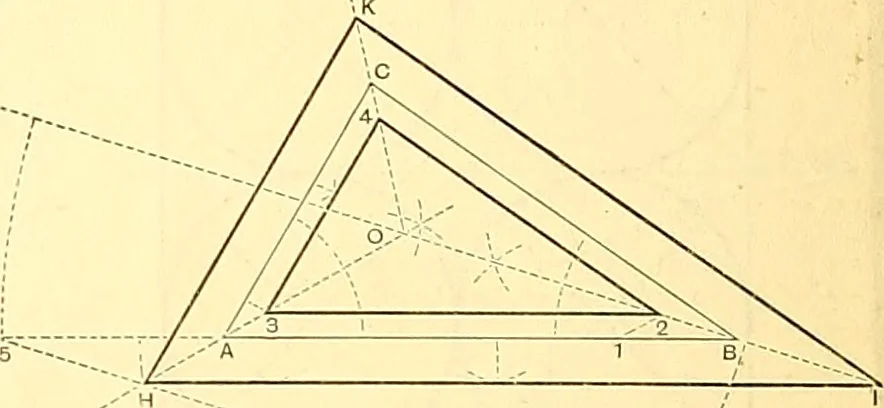

B, and C, produ-cing the lines of bisection until they meet in O. Draw from 1 a lineparallel to A O, to cut B O in 2. From A set off the distance 1 2in point 3. Draw 3 2, and from 3 and 2 draw lines parallel withA C and B C, to meet 0 C in 4. 3 2 4 is the required triangle. To idraw the triangle… … THE AMEEICM DRAWING-MODELS * FOR TELE USE OF Common Schools, Drawing Classes, and Schools of Art andScience. Manufactured at the Washburn Machine-Shop, connected vntk tke FreeInstitute of Industrial Science, Worcester, Mass., FR03I DESIGNS BY PROF. WALTER SMITH, STATE DIRECTOR OF ART EDUCATION FOR…
Geometrical drawing
