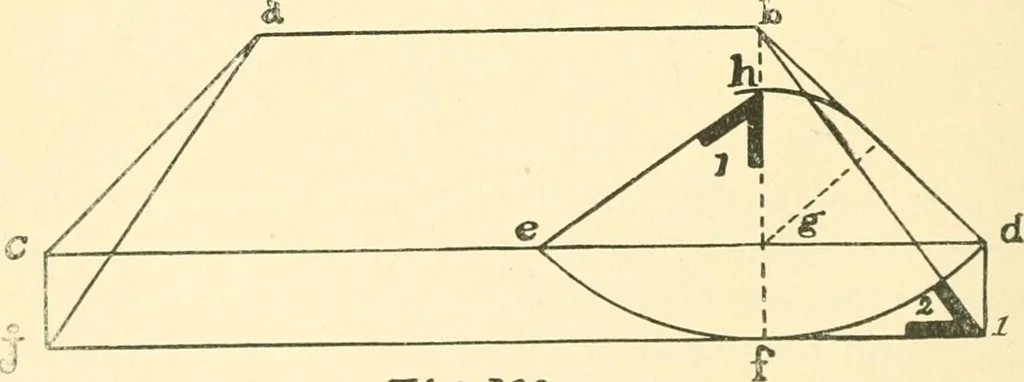

Fig. 762 as radius and b as centre, strike arc c f d; then draw linej i parallel \.o c d and touching the arc at f; connect c jand d i; then draw line from b to /, which gives the bevelfor the face cut, as shown at 2 ; then draw perpendicular FOR CARPENTERS AND MECHANICS. 113
