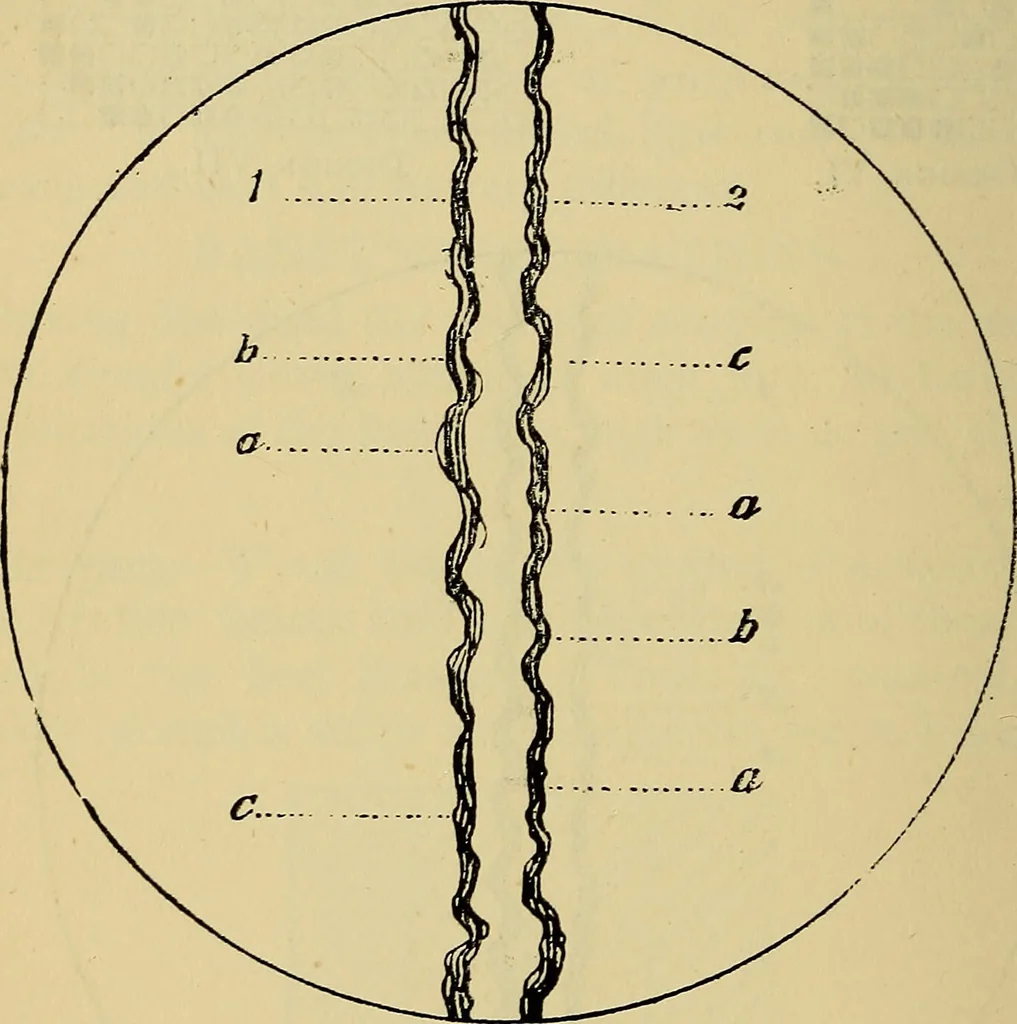

Fig. 20. In Figure 20 are given two threads out of a cloth 48 which is a stripe composed of the weaves given inDesign VII. Thread i has been taken out of section i onthe design, being Mayo or Campbell twill, a — twodown, i = I up, and c = two down, and d —- three up.Thread 2 is taken from section 2… … Fig. 21.show alternately sections of each weave, and conse-quently might be of use in indicating the width of stripeseach weave occupies. Cliecks.—These may be treated in very much thesame manner as stripes, the Aveaves being taken off each 49 section of the pattern and combined as efficiently as…
