Analytical mechanics for students of physics and engineering (1913)
Dadourian, Haroutune Mugurditch, 1878- · New York, D. Van Nostrand Company · leaf 45

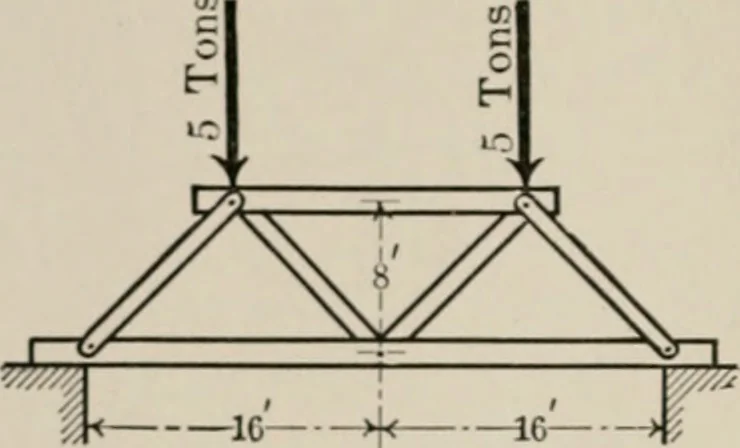

ircularwire in a vertical plane by means of a string subtending an anglithe center. Show that the inclination of the string to the horizon isgiven by tan0=(l. j 1(jtana. 6. A bridge, Fig. (a), of 60-fool span and 10-foot width has two queen-post trusses 9 feet deep. Each truss is divided into three… … Fig. (b). 7. Find the force in one of the members of the truss of figure (b). 8. A weight rests upon a smooth inclined plane, supported by two equalstrings the upper ends of which are fastened to two points of the plane inthe same horizontal line. Find the tensile force in the strings and…
Mechanics, Analytic
Internet Archive · California Digital Library · Public Domain Mark 1.0. Free to use for anything.
