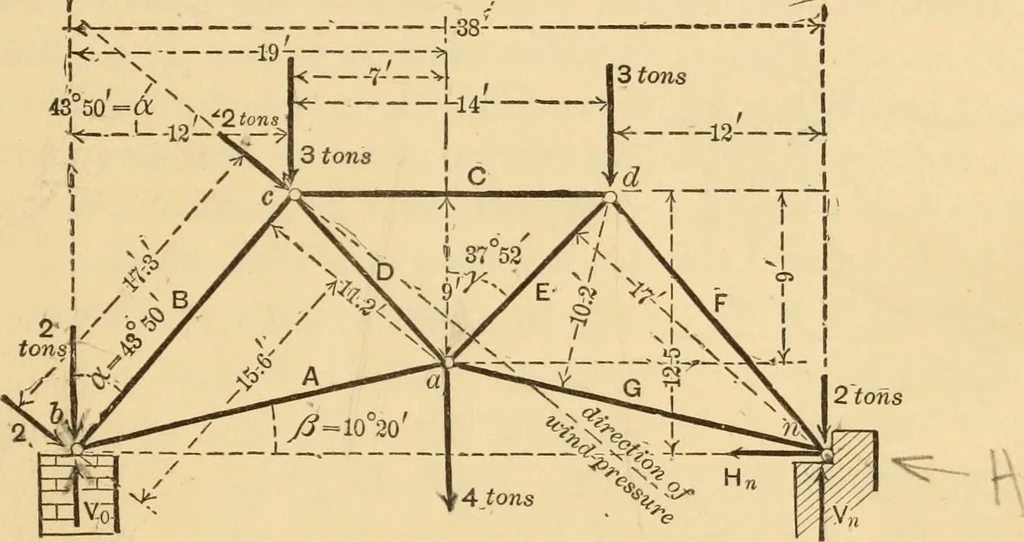

(from ^ hor.comps. = 0), we have also jB^ = 2130 lbs. and can now computethe actual oblique hinge-pressures A and B, at A and B re-spectively. From A = VA: + A^\ and B = VBJ + By\we have finally A = 2354 lbs., and B ^ 4978 lbs. From tan X^T, -^ A^) we find that A makes a smaller angle withthe… … -vv Fig. 73. carried directly on the pin of the corresponding joint, so thateach link or member will be considered as a straight two-force pieceand hence in simple compression or tension along its axis. Inobtaining free bodies, therefore, any piece or pieces may be con-ceived to be cut and the…
