Annual report - National Advisory Committee for Aeronautics (1915)
United States. National Advisory Committee for Aeronautics, United States. National Advisory Committee for Aeronautics. Technical report · Washington, U.S. Govt. Print. Off · leaf 576

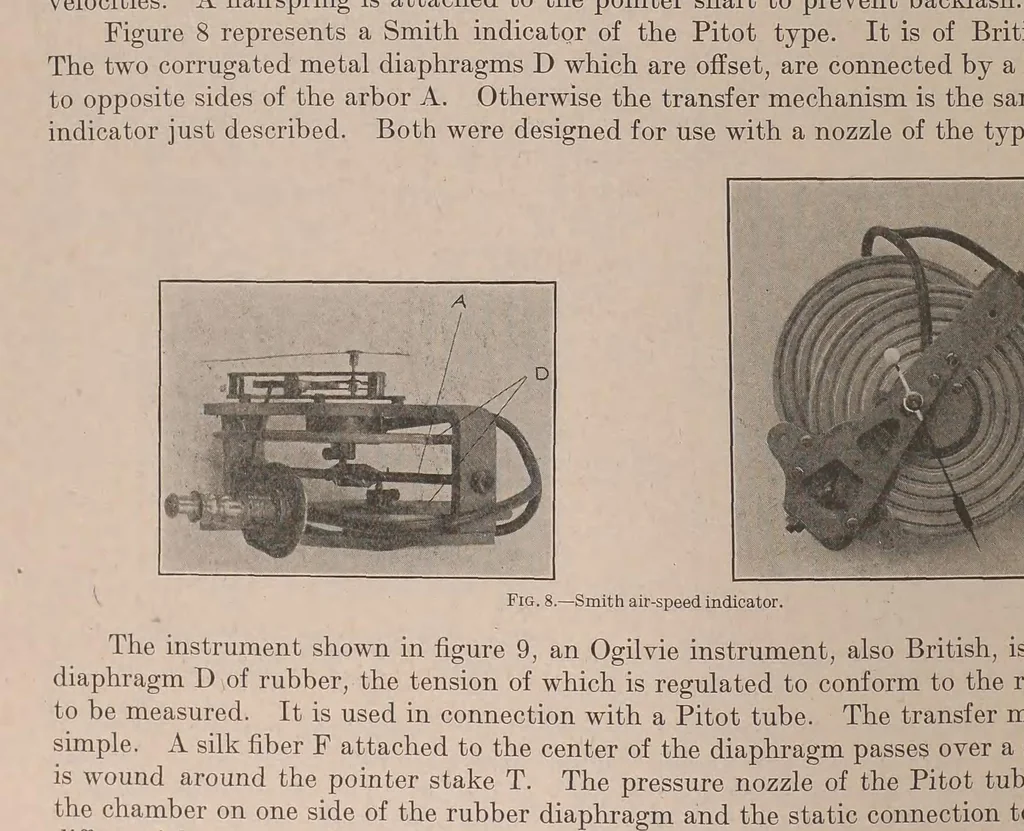

Pitot nozzle; that on the other side, to the static tube. As a result of the differential pressure developed the pin P is pressed against the spring S which in turn operates the indicat¬ ing mechanism by means of the lever L. Nozzle G, figure Fig. 9.— OgiMe air-speed indicator. 1, was designed to… … Fig. 10, — Clift air-speed indicator. spring S which is in contact with the steel ball B at the end of the adjustable lever L which in turn is attached to the arbor A, The pin T also attached to the arbor A supports the fine
