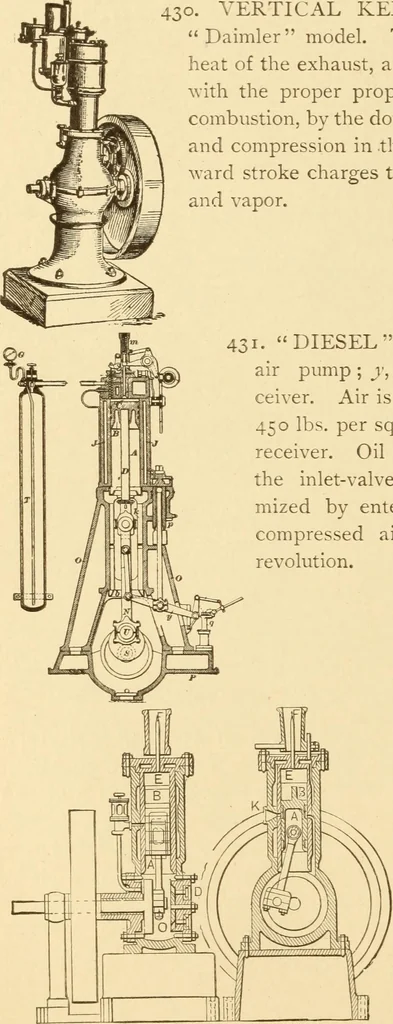

nd-ary chamber and port, closed abouthalf-stroke, shutting off part of the chargeduring compression, which is explodedduring the impulse stroke of the piston. I20 MOTIVE POWER. 430. VERTICAL KEROSENE OIL ENGINE, Daimler model. The oil is vaporized by theheat of the exhaust, and forced into the… … 431. DIESEL MOTOR.—A, cylinder; /,air pump ; v, air-pump lever; T, air re-ceiver. Air is compressed by the pump to450 lbs. per square inch, and stored in thereceiver. Oil is fed by a small pump tothe inlet-valve chamber, where it is ato-mized by entering the cylinder with thecompressed air.…
