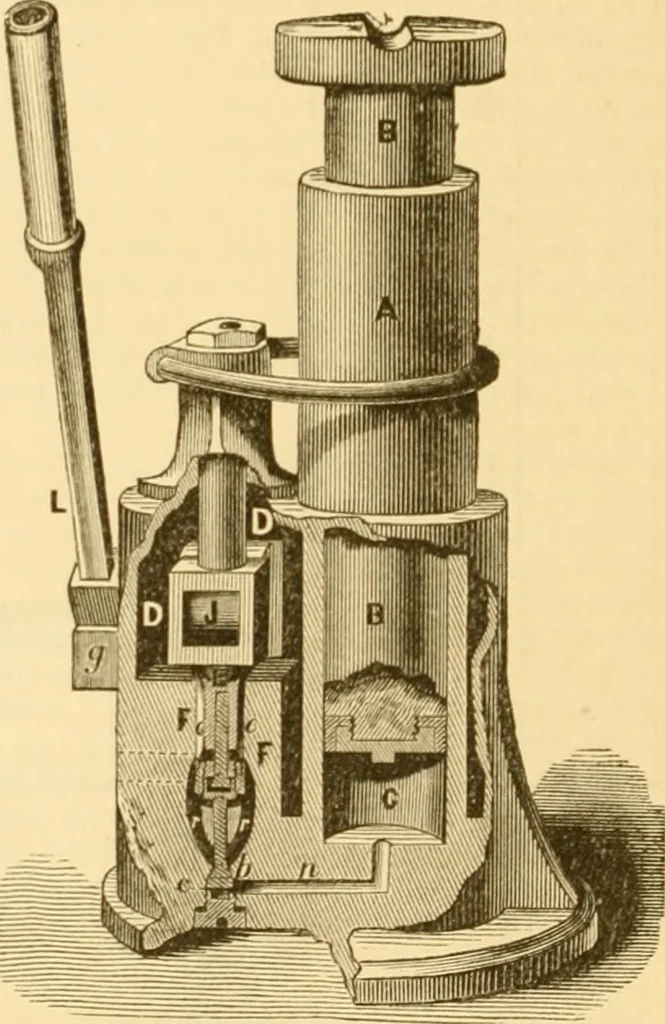

Fig. 2484 is a sectional view of a locomotive jack.The machine is from 2 to 8 or more inches in diame-ter, according to the power desired, with an enlargedhead (attached to the inner cylinder B, which is theram), having a socket for the reception of the lever,by winch the piston of the force-pump…
