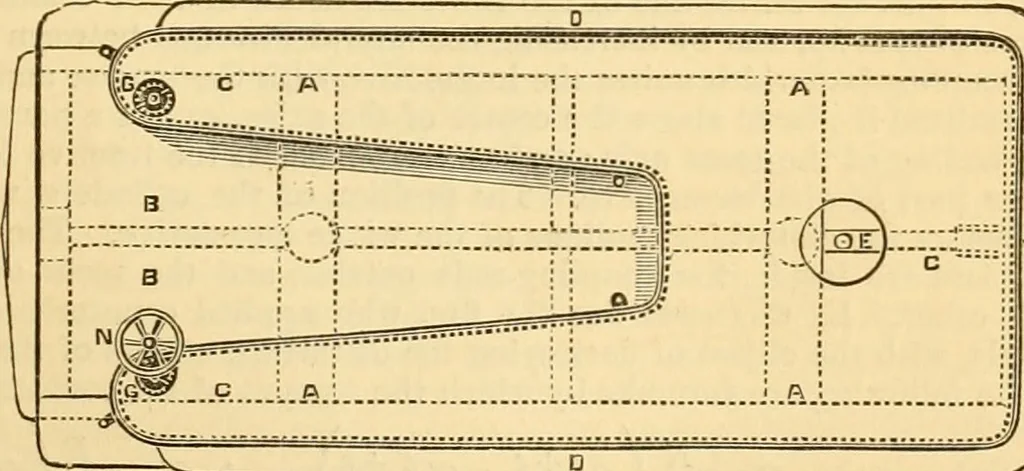

An illustration from Appletons' cyclopaedia of applied mechanics: a dictionary of mechanical engineering and the mechanical arts, 1880, leaf 336 — uires cast-iron brackets to be bolted to the longitudinal members of the frame. The floor-timber which cov-ers the frame extends over these brackets, projecting beyond the tank, which is placed on it. Thetank is secured on all sides from slipping by wooden mouldings, which are nailed to the floor,… … 322 LOCOMOTIVE—INTERNAL DISTURBING FORCES. to clean the inside of the chamber. This hole has a sheet-iron neck, or a cylinder riveted around it,on top of which is placed a cover. The water from the tank is conducted to the locomotive pumps,or injector supply-pipes, by rubber hose FF, which is…
