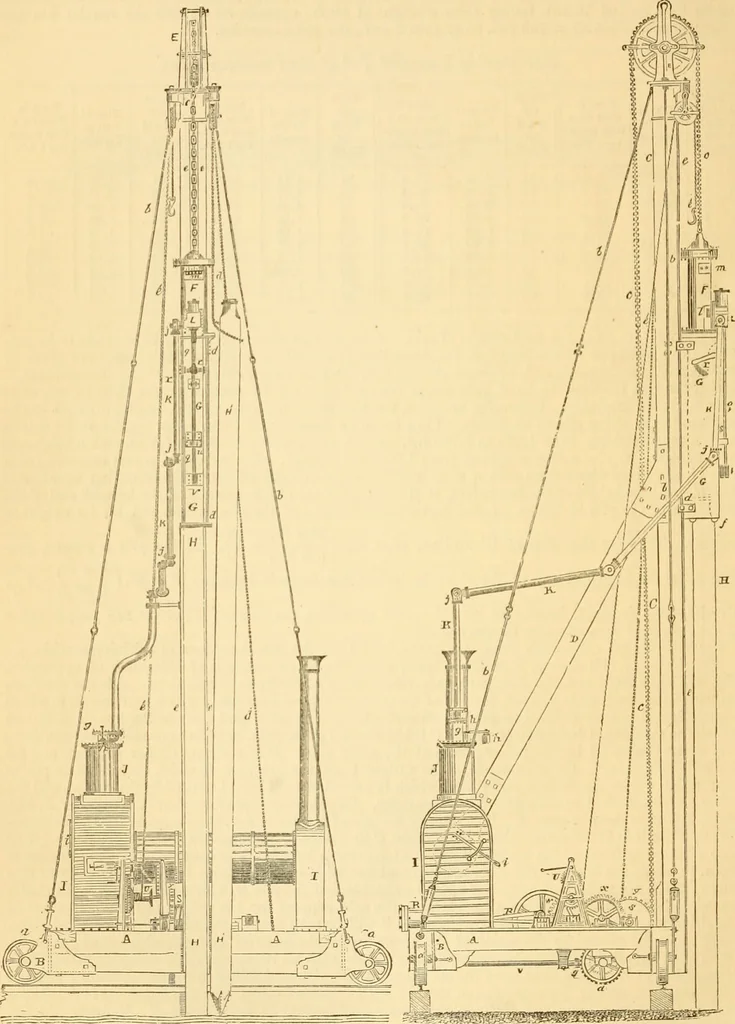

acting upon the valve-lever so as to permit the escape of steam after it has raised the ham-mer to a sufficient height. P is the hammer fitted to the block by a wrought-iron key o. Q is thelatch-lever, p is a small solid piston working in a cylindrical part of the valve-chest, and attachedto the… … in Fig. 3383, unless counteracted by a superior force, q is the valve-spindle ; r, the valve-lever; s,the trigger, the function of which is to keep the steam-valve in such a position as to prevent theadmission of steam into the cylinder during the descent of the hammer-block ; t, the parallel bar…
