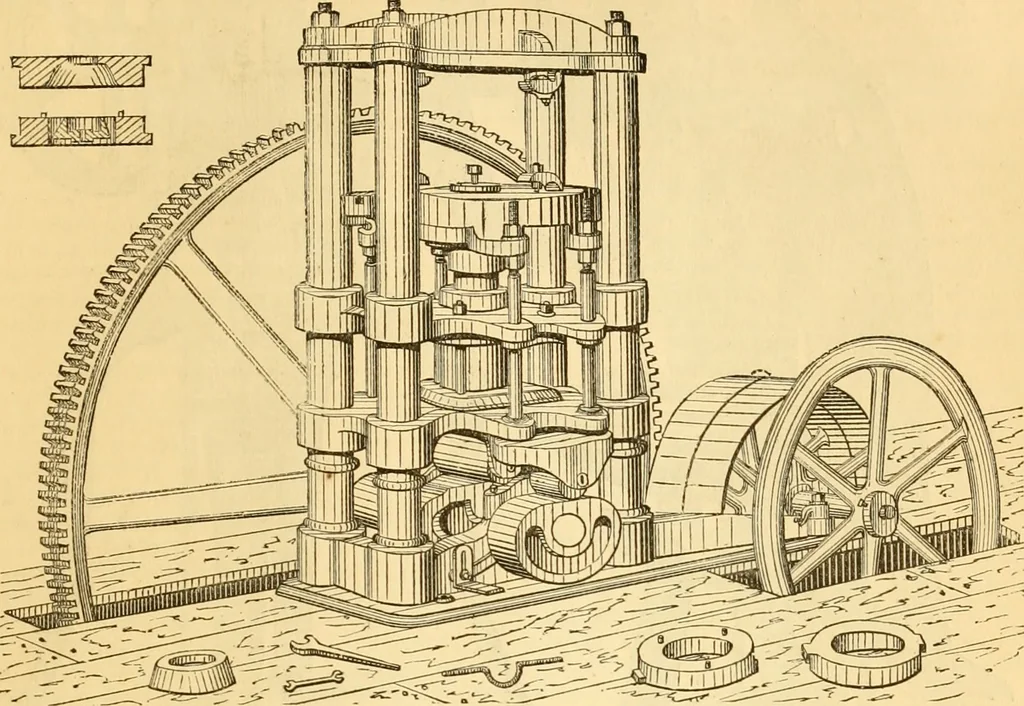

PRESSES. 567 heavy base casting, supporting the shafts, gearing, fly-wheel, etc., and the four columns which formthe bearings for the slides. The outer slide, to which is bolted the blank-holder, is driven up by the 3444. … two outer cams a certain distance, adjustable by the four rods with double nuts, and remains station-ary while the inner slide, with punch attached, ascends a greater distance (adjustable by a screw withlock-nut on plunger), carrying the punchup into the upper die, thus drawing thesheet-metal blank…
