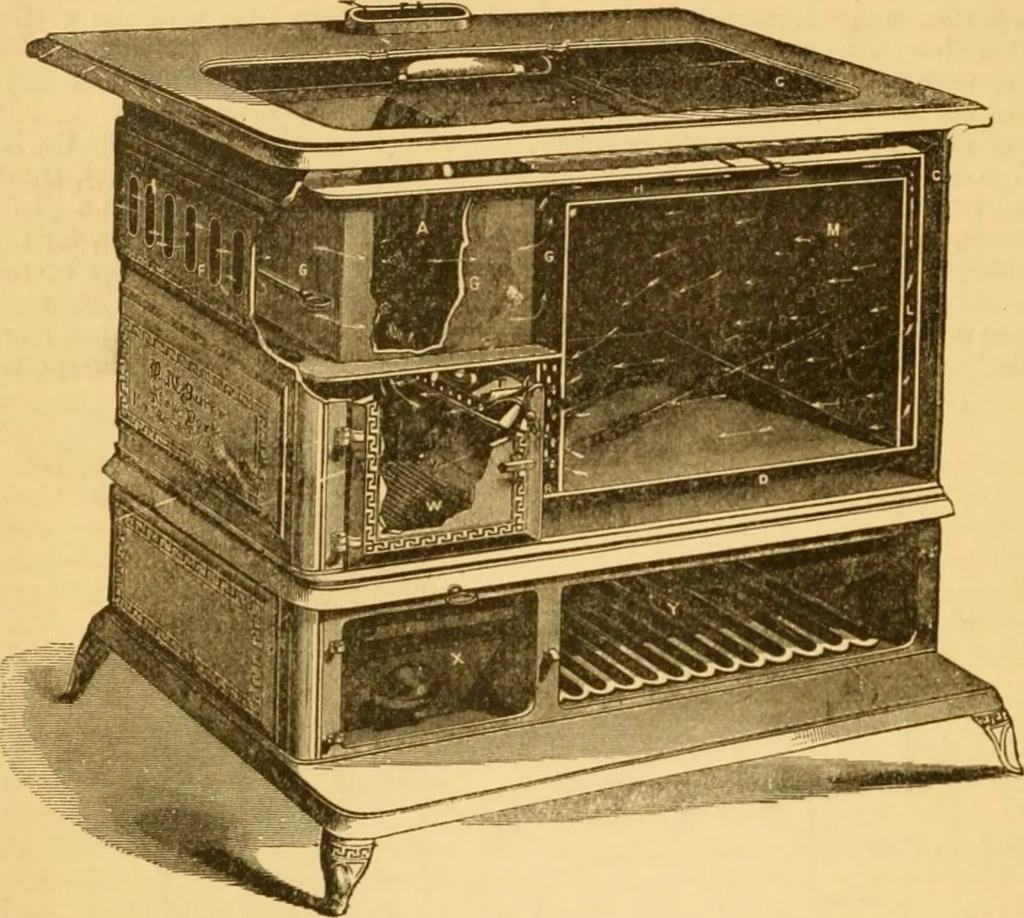

// is the tophot-air chamber; X,the back hot-air cham-ber, from which thehot air passes directlyinto the oven throughthe perforated distrib-uting interior back-oven plate M. N isthe interior front-ovenhot-air distributingplate. R is the lowerIn nit hot-air chamber,whence the hot air isdrawn through… … arrows indicate the circulation of the hot air, and the dark ones that of the products of combustion. Fig. 4056 represents the Magee cooking stove, made by the Magce Furnace Company of Boston,Mass. The different parts arc named in the ^aEB^^B 405G. engraving. Air is ad-mitted into a chamberformed…
