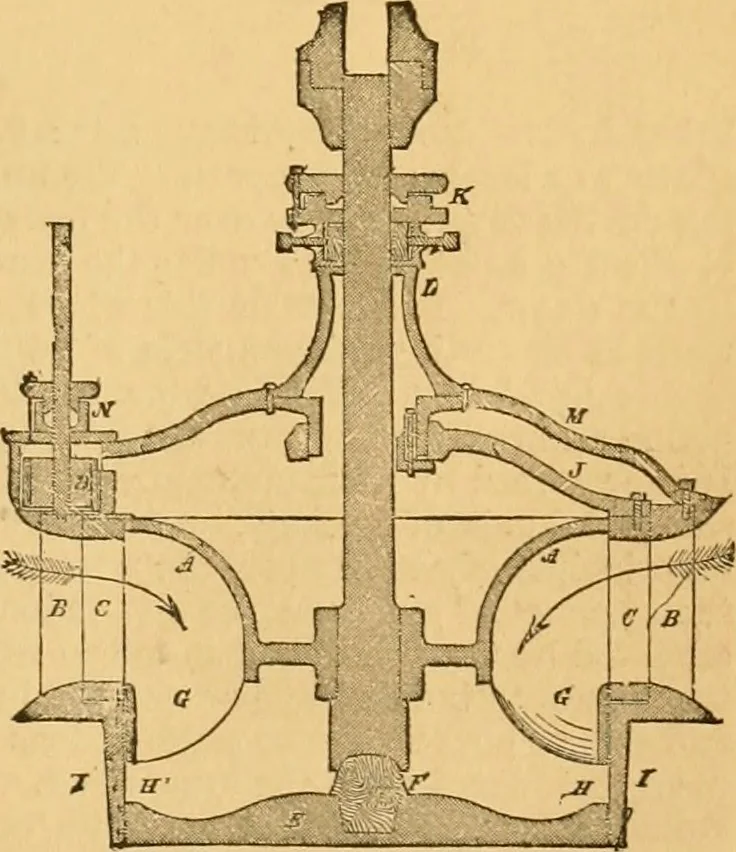

case; C is that portion of the chute comprised in theregister-gate; D is the pinion which works into a seg-ment upon the register-gate for the purpose of openingor closing the same. The arrows indicate the course ofthe water through the chutes or buckets of the wheel. … The other parts are as follows: E, cross- 922 WATER-WHEELS, TURBINE. arms or bridge-tree; F, wooden step upon which the wheel revolves; G, bucket of the wheel; H,band surrounding buckets on outside; 7, draught-tube ; /, gate-arms, supported at the centre, servingthe double purpose of keeping the…
