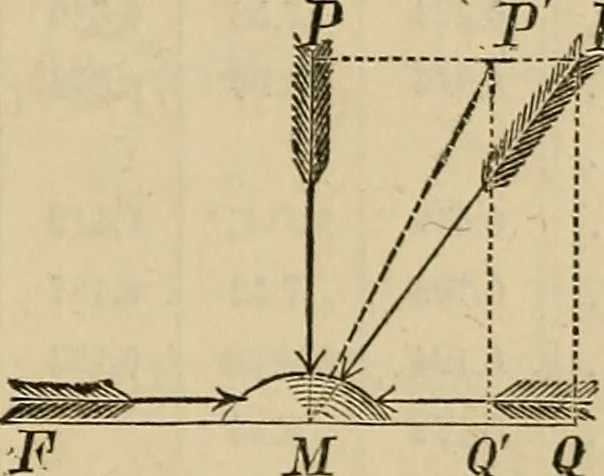

Construct the parallelogram of forces P V Q M {:^g. 213). V M rep-resent the resultant of the two forces P and Q. The actual friction isalways a certain given fraction of P acting parallel to the impressed sur-face. Take M Q equal to this given fraction of P M, complete the paral-lelogram, and draw… … Fig. 212. M Q Q Fis. 213.
